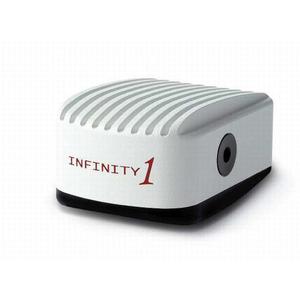

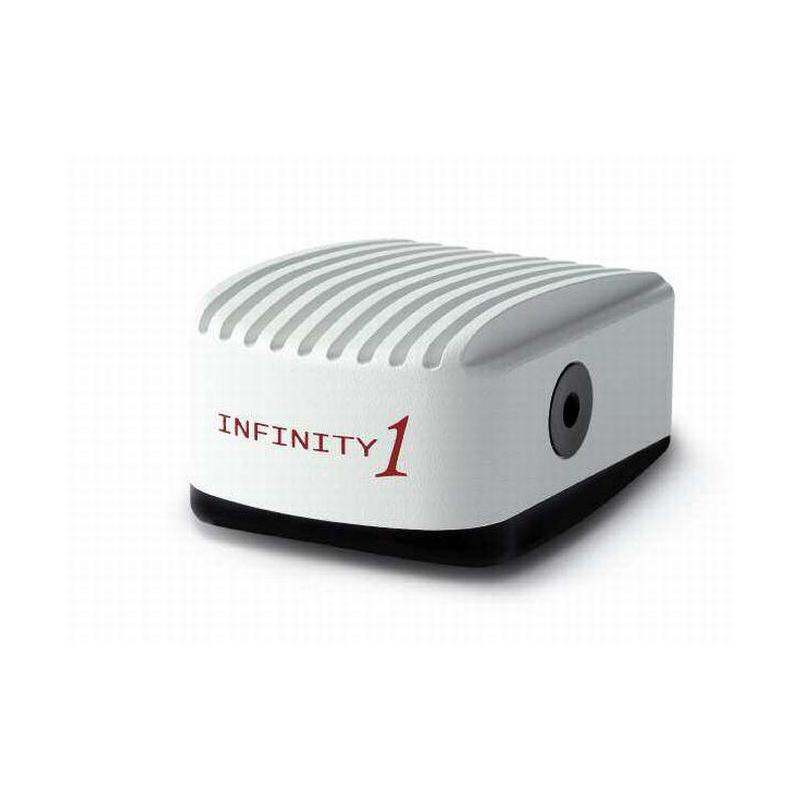

INFINITY 1-5, color, CMOS, 5MP
For applications that demand extremely high resolution, the INFINITY1-5 camera produces a full 2592 x 1944 video preview with speeds of 7 frames per second (fps) in both colour and monochrome formats. This full 5.0 megapixel sensor allows users to view fine detail in samples and provide a high resolution preview to large monitors and overhead projectors.
Full Image Analysis Software Included
INFINITY CAPTURE, an intuitive image capture program, and INFINITY ANALYZE, a full image analysis package offering camera control, measurement, annotations, tiling and post capture enhancement, are both included. Camera and software combined to create a complete microscopy imaging solution for your application.
USB 2.0 plug-and-play interface
Once the software has been installed, running one or more cameras on a single computer is as simple as plugging them into a high-speed USB 2.0 port. This camera is compatible with the USB 3.0 interface, supporting the existing USB 2.0 frame rates.
Third-party software integration
INFINITY cameras are integrated into a variety of third-party software packages through direct drivers or with TWAIN/DirectX support.
Features
- Low noise progressive scan 1/2.5” 5.0 megapixel CMOS, Micron MT9P031 sensor, monochrome
- Sub-windowing for rapid focus and scanning of samples
- 7 fps at full 2592 x 1944 resolution and 60 fps at 640 x 480 resolution
- High-speed USB 2.0 for ease of installation on any computer
- Selectable 8 or 12-bit pixel data modes
- Software compatible with Windows 10, 8, 7, Vista, Mac OS X 10.7, 32 and 64-bit operating systems
- Includes TWAIN and DirectX/Direct Show support
Recommended applications
•Brightfield
•Dark field
•Live cell imaging
•Histology
•Pathology
•Cytology
•Defect analysis
•Semiconductor inspection
•Metrology
Warranty: Four (4) year warranty
Microscope Coupler: Requires 0.5 x C-mount coupler
Included in the box:
- INFINITY1-5M- 5.0 megapixel monochrome CMOS camera
- Lu802 - 2 m USB 2.0 cable
- LuINFSW-DVD - DVD with INFINITY user application software (including INFINITY ANALYZE), TWAIN driver and documentation
