CMEX 5 WiFi camera
Highlights
- 5.0 Mpix CMOS WiFi color USB 2.0 camera
- 1/2.5” sensor, 1280 x 720 pixels images
- ADC 12 bit
- Low signal/noise ratio
- Send H.264 encoded images to WiFi enabled smartphones, computers, and tablets with iOS, Android and Windows systems
Specifications
- Sensor CMOS 1/2.5 inch 5 Mpix
- Pixels 1280 x 720 pixels images
- Scan mode Electronic rolling shutter
- Pixel size 2.2 µm x 2.2 µm
- Filter RGB color filter and IR-cut off filter (380-650 nm)
- Mount C-mount
- Max fps Up to 12frames per second (2592 x 1944 pixels)
- ADC 12 bits
- Sensitivity 0.53 V/lux-sec @ 550 nm
- Exposure Automatic or manual, from 1 ms to 800 ms
- White balance Automatic/manual
- Dynamic range 66.5 db
- S/N max 40.5 db
- Data interface USB 2.0 at 480 Mb/s
- Operation 0 – 50° C, 30-80 % humidity
- Storage temperature -20 to 60° Celsius
- Supplied with 0.45x objective with C-mount, USB 2.0 cable, 30 and 30, 5 mm to 23.2 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB charger, CDROM with ImageFocus Alpha software, Android .apk app, carton box
- Compatibility Windows XP, Vista, Windows7, Windows 8 (32 and 64 bit configurations), iOS IPad or IPhone, Android Pad and Phones
- Requirements PC with Intel Core2 2.8 GHz or higher or equivalent. Minimum 2Gb RAM memory, PC with WiFi enabled device with DHCP, iOS Ipad or Pad with Android system or iPhone or SmartPhone with Android
- Power supply With supplied USB charger or through PC USB port
- Housing Aluminium housing 68 x 68 x 45 mm

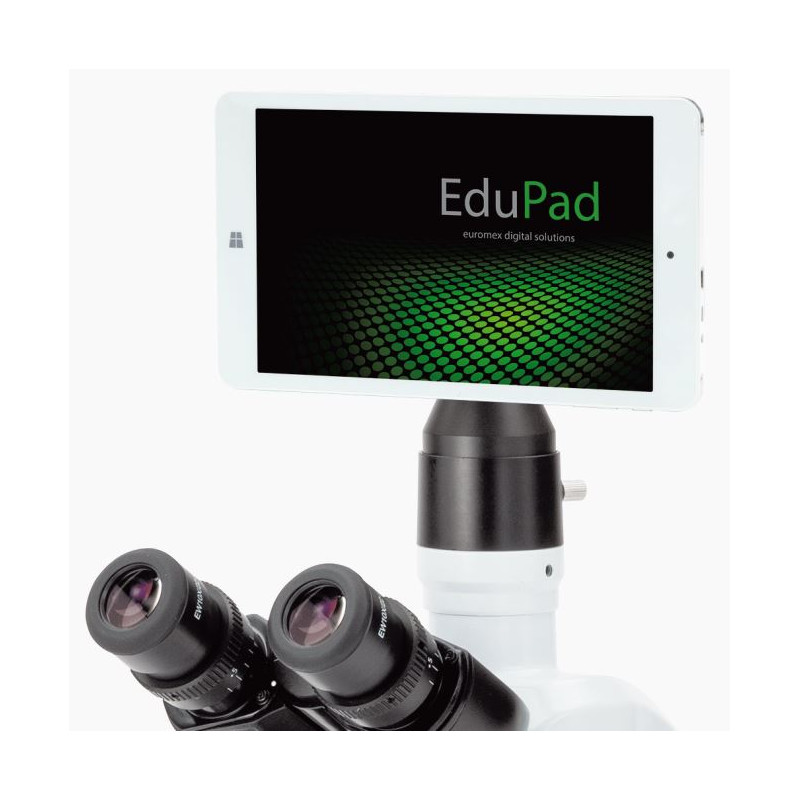

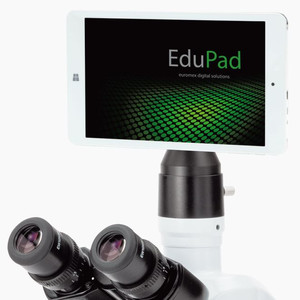

EduPad tablet 8" with microscope camera
The EduPad tablet with an 8" display is available with a 1.3 MP, 3.2 MP, 5 MP or even a WiFi camera. Together with the ImageFocus 4 or ImageFocus Alpha software, it offers a complete solution for modern microscopy in education, industry and laboratories.
- 8" tablet with microscope camera
- 1280 x 800 Pixel touchscreen
- Full Windows 8.1, 32-bit system
- ImageFocus 4 software for PC
- ImageFocus Alpha for WiFi-enabled PCs and Android instruments

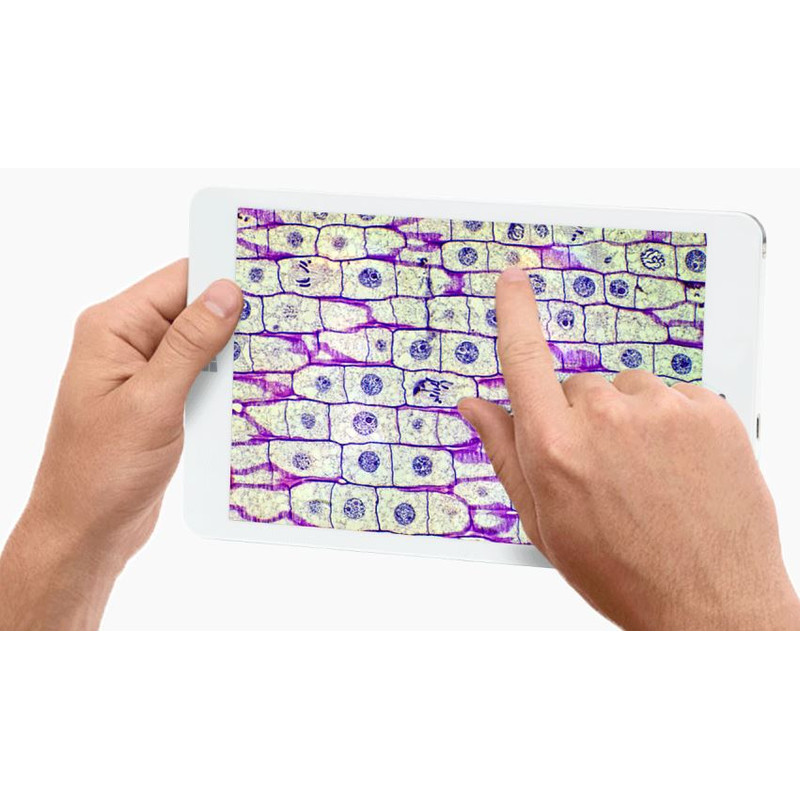

- Tablet can be completely separated from the camera
- 1.3 MP, 3.2 MP, 5.0 MP or WiFi camera
Specifications
PROCESSOR: Quad Core 1.33 GHz with HD graphics processor
SCREEN: 1280 x 800 pixels (WGXA) touchscreen, LED backlight
WORKING MEMORY: 1 GB DDR RAM, 2 MB cache
HARD DRIVE: 32 GB internal SDD, micro SD up to 32 GB
WEBCAM: 2MP , 1600 x 1200 pixels front camera and rear camera resolution
Interfaces: Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
AUDIO: Stereo system with 3.5 mm audio jack and internal microphone
BATTERY: Lithium, 4420 mAh, 17 Wh
HOUSING: Aluminium, white, 214 x 128 x 9.8 mm
WEIGHT: 370 grams
COMPATIBLE WITH Windows Windows 7, 8 and 10, both 32 and 64 bit configuration
SOFTWARE
The EduPad comes with ImageFocus 4 software, which is compatible with all of the above USB 2 cameras. In addition to live preview, the software captures images in jpeg, tiff or bmp formats or video recordings in avi format. The software has a wide range of functions and measurements for stored and live images. Brightness, contrast and saturation of the displayed images can be adjusted. Camera parameters for exposure time, white balance and colour control are easily accessible.
