TECHNICAL DATA sCMEX-3 (DC.3000s)
- Sensor: CMOS 1/2.8 inch
- Pixels: 2045 x 1536 pixels, 3.0 Mpix
- Pixel size: 2.5 µm x 2.5 µm
- Colour filter: RGB
- Connection: C-mount
- Max fps: @ 2045 x 1536 pixels-11 f/s depending on camera parameters and exposure
- @ 1024 x 768 pixels-27 f/s (2x2 binning mode) depending on camera parameters and exposure
- @ 684 x 512 pixels-38 fps (4x4 binning mode) depending on camera parameters and exposure
- ADC: 16 bits
- Colour: 36 bits
- Sensitivity: 0.15 V/lux-sec @ 550 nm
- Exposure: automatic or manual from 0.1 ms to 3 seconds
- White balance: automatic/manual
- Signal-to-noise ratio: 69 dB
- Interface: USB 2.0 at 480 Mb/s
- Operating conditions: 0–60°C, 45–85% humidity
- Storage temperature: -20 to 70°C
- Supplied with: The scope of delivery includes a 0.35x lens with C/CS ring, a USB 3.0 cable, a 30 and 30.5 mm adaptor for stereo microscopes, a 76 x 24 mm calibration glass 1 mm/100, and a CD-ROM with the ImageFocus 4 software. All components are packed in a sturdy cardboard box.
- Software: Windows XP, Vista, Windows 7, Windows 8 (32 and 64 bit configurations), Windows 10
- Product number: DC.3000S

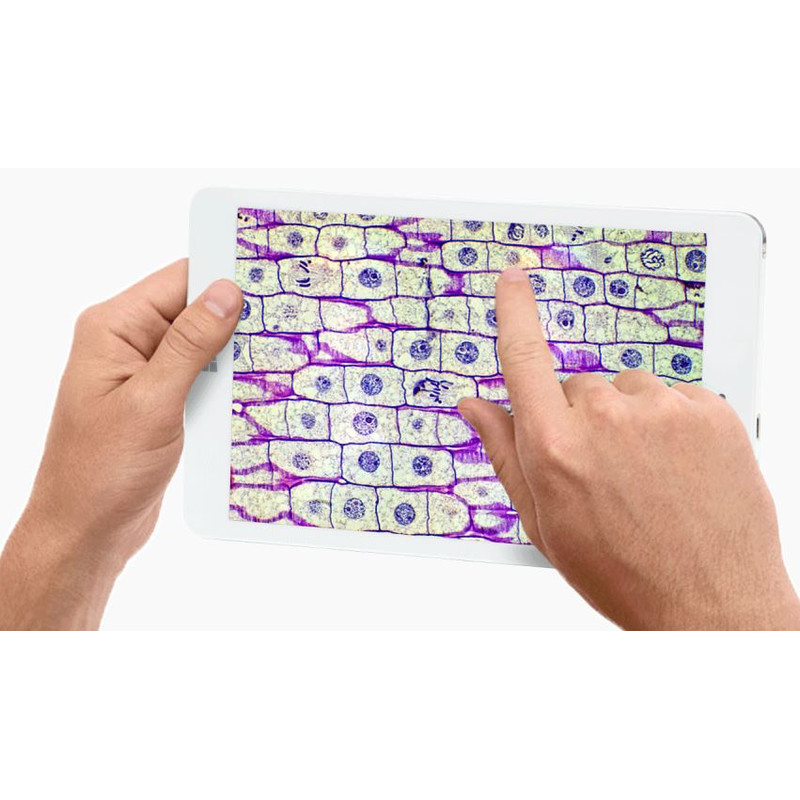

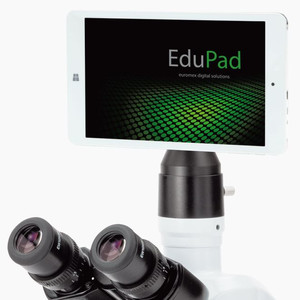

EduPad tablet 8" with microscope camera
The EduPad tablet with an 8" display is available with a 1.3 MP, 3.2 MP, 5 MP or even a WiFi camera. Together with the ImageFocus 4 or ImageFocus Alpha software, it offers a complete solution for modern microscopy in education, industry and laboratories.
- 8" tablet with microscope camera
- 1280 x 800 Pixel touchscreen
- Full Windows 8.1, 32-bit system
- ImageFocus 4 software for PC
- ImageFocus Alpha for WiFi-enabled PCs and Android instruments
- Tablet can be completely separated from the camera
- 1.3 MP, 3.2 MP, 5.0 MP or WiFi camera
Specifications
PROCESSOR: Quad Core 1.33 GHz with HD graphics processor
SCREEN: 1280 x 800 pixels (WGXA) touchscreen, LED backlight
WORKING MEMORY: 1 GB DDR RAM, 2 MB cache
HARD DRIVE: 32 GB internal SDD, micro SD up to 32 GB
WEBCAM: 2MP , 1600 x 1200 pixels front camera and rear camera resolution
Interfaces: Micro USB 2.0, Wi-Fi 802.11 b/g/n and Bluetooth 4.0
AUDIO: Stereo system with 3.5 mm audio jack and internal microphone
BATTERY: Lithium , 4420 mAh, 17 Wh
HOUSING: Aluminium, white, 214 x 128 x 9.8 mm
WEIGHT: 370 grams
COMPATIBLE WITH Windows Windows 7, 8 and 10, both 32 and 64 bit configuration
SOFTWARE
The EduPad comes with ImageFocus 4 software, which is compatible with all of the above USB 2 cameras. In addition to live preview, the software captures images in jpeg, tiff or bmp formats or video recordings in avi format. The software has a wide range of functions and measurements for stored and live images. Brightness, contrast and saturation of the displayed images can be adjusted. Camera parameters for exposure time, white balance and colour control are easily accessible.
CMEX-3 digital 3 Mpix USB-2 CMOS camera DC.3000c
The Euromex CMEX-3 digital 3.0 Mpix USB-2 CMOS camera and ImageFocus 4 analysing software are the perfect solution for modern digital microscopy for teaching, basic industrial and live sciences applications and for demanding amateurs. Suitable for biological and metallurgical microscopes as well as for stereomicroscopes Non-compressing real-time image data.
High sensitivity camera features, suitable Bright Field, Dark Field, Phase Contrast, Epi-illumination Very convenient to use, fits a standard 23.2 mm trinocular tube or eyepiece tube. To be used with Euromex ImageFocus 4 software, which can be freely downloaded. The software works solely with CMEX-1, CMEX-3, CMEX-5, CMEX-10, CMEX Pro 3, CMEX Pro 5, sCMEX-1, sCMEX-3 and Euromex cooled CCD color camera captured images.
Delivered with 0,5 x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereomicroscopy, 76 x 24 mm calibration 1mm/100 slide, CDROM with ImageFocus 4 software, carton box
Supplied with USB 2.0 cable
Compatible with Microsoft Windows XP, Windows Vista, Windows 7 and Windows 8, 32- and 64 bits.
- Sensor: 1/2" CMOS
- Pixels: 3.0 megapixels
- Output: High resolution 2048 ×1536 pixels format
- Pixel Size: 3.2 µm × 3.2 µm
- Frame Rate: @ 2048 x 1536 pixels up to 10 f/s depending camera settings and illumination; @ 1280 x 768 pixels up to 25 f/s depending camera settings and illumination; @ 640 x 480 pixels up to 40 f/s depending camera settings and illumination
- Color filter: RGB
- Mount: C/CS-mount
- ADC: 10 bits
- Color depth: 24 bits
- Signal/Noise ratio: 44 db
- Dynamic range: 72 db
- Sensitivity: > 1.3 V/lux @ 550 nm
- Exposure: Automatic or manual from 1 ms to 500 ms
- Interface: High Speed USB 2.0 (480 Mb/s)
