Microscopes > Upright microscopes > Bright field microscopes > ZEISS > Axiolab 5 > ZEISS Microscope , Axiolab 5, Incident light, bino, infinity, plan, 5x, 10x, 20x, 50x, 10x/22, Al, LED, 10W
Product no.: 77795

Microscope , Axiolab 5, Incident light, bino, infinity, plan, 5x, 10x, 20x, 50x, 10x/22, Al, LED, 10W

$ 12,100.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
Product questions?
advice for Microscopy

Product description

More about the series Axiolab 5...

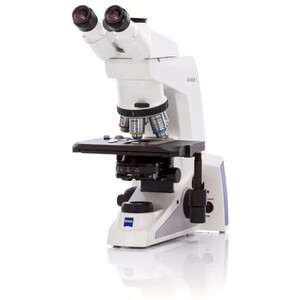

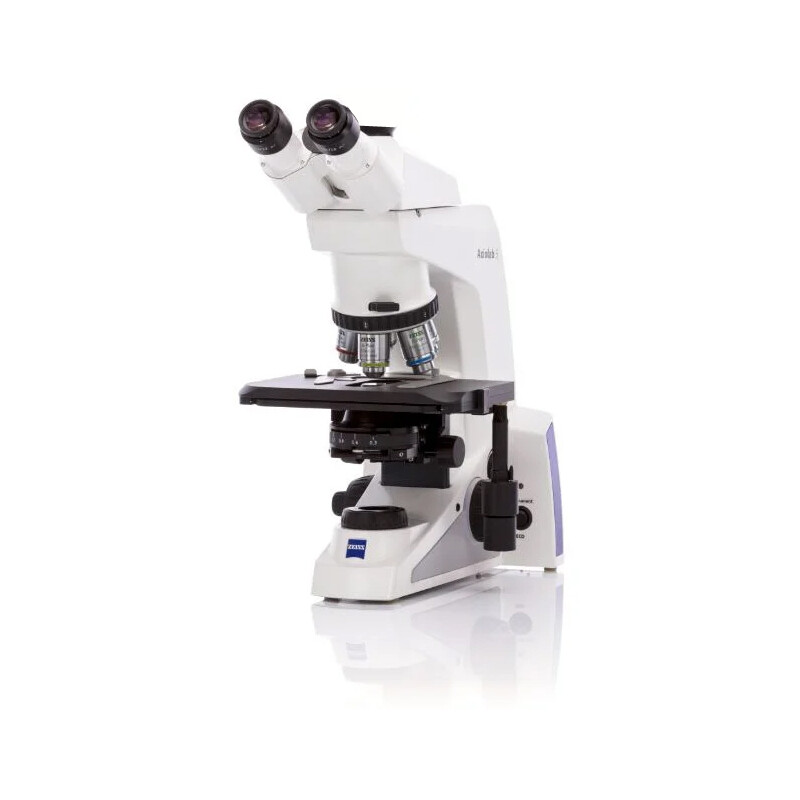

Axiolab 5 microscope for reflected light bright field

In brief

  • Objectives: A-Plan; 5x, 10x, 20x, 50x
  • Objectives: epiplan, HC
  • without camera

Components

  • Microscope tripod Axiolab 5, DL/AL, 5x HD coded, cross table 75x30 R 430037-9052-000
  • Binocular tube 30°/23, inverted image 425520-9000-000
  • Eyepiece PL 10x/22 Br. foc.
  • Augenmuschel  444801-0000-000
  • Reflector module Bright field ACR P&C for reflected light 424928-9901-000
  • EC Epiplan lens 5x/0.13 M27  422030-9902-000
  • EC Epiplan lens 10x/0.25 M27  422040-9902-000
  • EC Epiplan lens 20x/0.4 M27  422050-9903-000
  • EC Epiplan lens 50x/0.75 M27  422070-9902-000

Specifications

Optics

Image scale
5-50
Condensor
NA 0.9/1.25 H (Full Köhler)
Lens type
Semi-Plan Achromatic (infinity corrected)
Eyepiece
10/22 (HWF PL, suitable for spectacle wearers. Both eyepieces with diopter adjustment.)
Power supply
100-240 V
Magnification
50-500
Lighting
Transmitted light
Objective 1
5 x/0.13; WD: 11.8 mm
Objective 2
10 x/0.25 WD: 11.0 mm
Objective 3
20x/0.4 WD: 3.2 mm
Objective 4
50x/0.75 WD: 7.0mm
infinity corrected
yes
Lamp type
LED
Optical system
infinity

Capacity

Brightness control
adjustable
Lamp type
LED
Coating of optical system
Plan
Transmitted light
ja
brightfield
yes
Contrast methods
without

Mechanics

Type of build
binocular
Viewing posture (°)
25° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Cross table (75 x 30 mm)
Revolver
5

Special features

Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General

Colour
white / blue
Weight (g)
8200
Width (mm)
210
Length (mm)
357
Height (mm)
304
Series
Axiolab 5

Contrast methods

Phase contrast
no

Field of application

Industry
yes
Education
yes

Area of application

University
yes
Metallurgy
yes
Materials Science
yes

Miscellaneous

supplier product number
490980-0024-000
show more...
