The model
In addition to the standard features listed above, this model has a trinocular view and up to 600x magnification, which is achieved by planachromatic lenses with 4x, 10x, 40x and 60x image scales.
The HPM D Series
This new microscope series impresses with its excellent price/performance ratio and variable expansion options with polarization, dark field or phase contrast.
All instruments feature a large all-metal stand with DIN optics and a 5-position objective turret.
They are equipped with a PL WF 10x/18mm eyepiece and have a 140x132 mm microscope stage with integrated, coaxial cross table and a height-adjustable, centring Abbé condenser (N.A. 1.25'') with iris diaphragm and filter holder.
Lighting is provided by an adjustable LED with a light intensity equivalent to approximately 30 W.
Focusing is possible using the two coaxial knobs for coarse and fine adjustment with slip coupling.

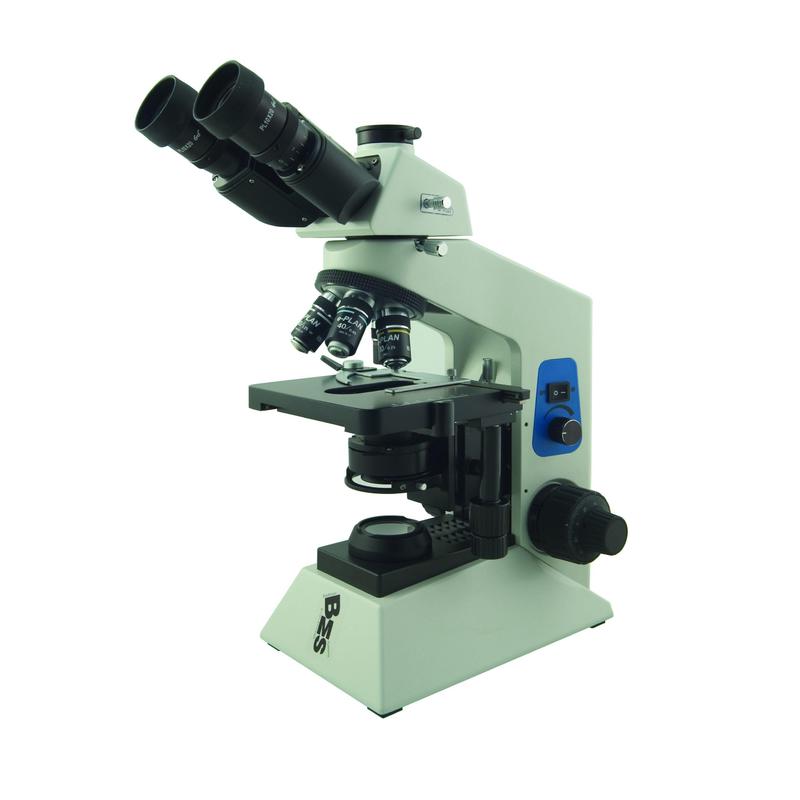

Similar to illustration! (Objectives are different)
