The HPM D Series
This new microscope series impresses with its excellent price/performance ratio and variable expansion options with polarization, dark field or phase contrast.
All instruments feature a large all-metal stand with DIN optics and a 5-position objective turret.
They are equipped with a PL WF 10x/18mm eyepiece and have a 140x132 mm microscope stage with integrated, coaxial cross table and a height-adjustable, centring Abbé condenser (N.A. 1.25'') with iris diaphragm and filter holder.
Lighting is provided by an adjustable LED with a light intensity equivalent to approximately 30 W.
Focusing is possible using the two coaxial knobs for coarse and fine adjustment with slip coupling.
The model
In addition to the standard features listed above, this model has a trinocular view and up to 1000x magnification, which is achieved by E-Plan lenses with image scalesof 4x, 10x, 40x and 100x.

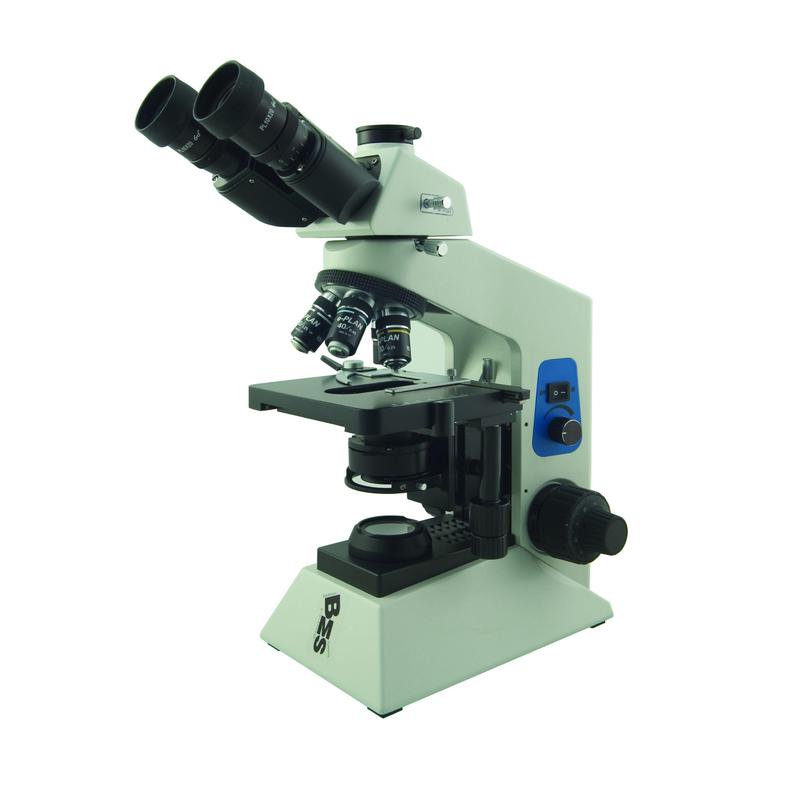

Similar to illustration! (Objectives are different)
