Microscopes > Upright microscopes > Bright field microscopes > Optika > B-510 > Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD
Product no.: 67795

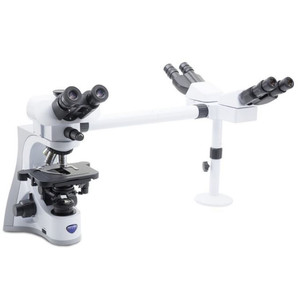

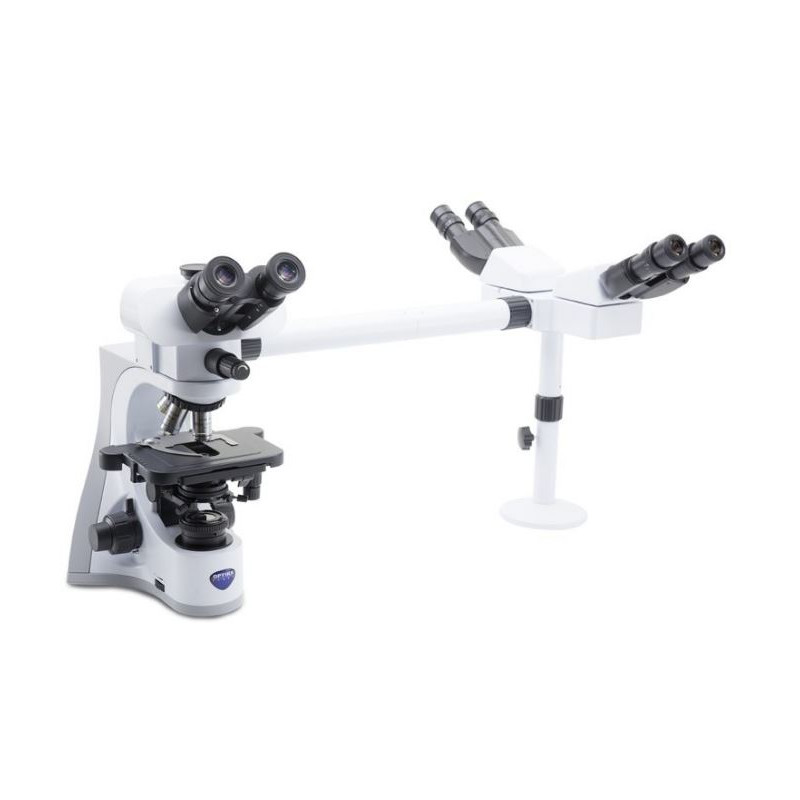

Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD

RRP: $ 8,000.00 Our price:
$ 7,200.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
Product questions?
advice for Microscopy

Product description

More about the series B-510...

Model: B-510BF

Typology: ROUTINE MICROSCOPE

Description: Laboratory microscope for routine and research applications. Dye-cast frame, with high stability and ergonomy, for transmitted light observation

Illumination:

  • Light source: X-LED3, light intensity control using a knob on left side of the frame.
  • LED power: 3.6 W, comparable to a 50 W halogen bulb.
  • Color temperature: 6,300 K.
  • LED lifetime: > 65,000 hours.
  • Power supply: Input 110/240 Vac, 50/60 Hz; Output 6 Vdc 2.5 A.
  • Max. required power: 6 W.
  • Köhler illumination system with Field Diaphragm.

Observation Modes:

  • Brightfield.

Focusing:

  • Coaxial coarse and fine focusing mechanism (graduated, 0.002 mm) with upper stop, to prevent the contact between objective and specimen.
  • Flat fine focusing knob on the right side.
  • Adjustable tension of coarse focusing knob.

Stage:

  • Double layer with mechanical sliding stage, size 233x147 mm, X-Y movement range 78x54 mm. Belt-drive in X direction.
  • Vernier scale on two axes, accuracy 0.1 mm.

Nosepiece:

  • Quintuple revolving nosepiece, rotation on ball bearings.

Head:

  • Trinocular observation head,
  • inclined 30°
  • rotatable 360°
  • Diopter adjustment on left eyepiece (+- 5 diopter adjustment).
  • Interpupillary adjustment 50 - 75 mm.
  • Fixed photo port, 50/50 ratio.

Eyepieces:

  • Plan Extra Wide Field, PL 10x/22
  • High Eyepoint.

Objectives:

  • Infinity corrected optical system IOS.
  • IOS W-PLAN 4x/0.10, W.D. 17.3 mm
  • IOS W-PLAN 10x/0.25, W.D. 10 mm
  • IOS W-PLAN 40x/0.65, W.D. 0.54 mm
  • IOS W-PLAN 100x/1.25, W.D. 0.13 mm (oil immersion)
  • All objectives have anti-fungus treatment.

Condenser:

  • Swing-out type condenser
  • sliding-in
  • N.A. 0.2/0.9
  • centering system.

Dimensions

HEIGHT: 420 mm

WIDTH: 270 mm

DEPTH: 390 mm

WEIGHT: 9.1 kg

Accessories:

Instruction manual and dust cover included.

Specifications

Optics

Image scale
4-100
Number of objectives
4
Lighting
Transmitted light
Field curvature
Plan
Colour correction
achromatic
Suspension
yes
Immersion lens
yes
Condensor
Abbe N.A.1.25
Lamp type
LED (X-LED3, 3.6 W, comparable to a 50 W halogen bulb)
Objective 1
IOS W-PLAN 4x/0.10, W.D. 17.3 mm
Objective 2
IOS W-PLAN 10x/0.25, W.D. 10 mm
Objective 3
IOS W-PLAN 40x/0.65, W.D. 0.54 mm
Objective 4
IOS W-PLAN 100x/1.25, W.D. 0.13 mm, oil
Eyepiece
WF 10x / 22 mm (Ø 30mm)
infinity corrected
yes
Magnification
40-1000
Optical system
infinity

Capacity

Brightness control
yes
Fluorescence
yes
brightfield
yes

Mechanics

Type of build
Trinocular
Viewing posture (°)
30° angled eyepiece
Specimen stage
Cross table
Revolver
5
Focusing
Coarse and fine movement

General

Weight (g)
9100
Height (mm)
420
Width (mm)
270
Length (mm)
390
Series
B-510

Field of application

Medicine
yes

Miscellaneous

supplier product number
B-510BF
show more...

Product safety

Manufacturer: Optika S.R.L., Via Rigla, 32 - Italia , 24010 Ponteranica (BG), DE, http://www.optikamicroscopes.com/
Product safety

Recommended accessories

Microscopy accessories > Eyepieces (3)
no image

Optika Eyepiece M-601, WF15x/16, high eyepoint

$ 94.00*
+ Show more accessories in this category: 2
Microscopy accessories > Lenses (31)
Objective

Optika M-1049, IOS W-PLAN 2X/0.08 microscope objective

$ 126.00*
+ Show more accessories in this category: 30
Microscopy accessories > Cameras (13)
Measuring eyepiece

Optika M-781, micrometer eyepiece EWF 10x / 22 (XDS, POL, IM)

$ 108.00*
+ Show more accessories in this category: 12
Microscopy accessories > Contrast methods (4)

Optika M-175.1 rotating table, for polarisation set, for table size 233 x 147 mm

$ 123.00*
+ Show more accessories in this category: 3
Microscopy accessories > Miscellaneous (6)

Optika M-635 heated microscope stage, digital (cannot be retrofitted)

$ 550.00*
+ Show more accessories in this category: 5
Microscopy accessories > Other (1)
Dust cover

Optika DC-003 dust cover, acrylic, 600 (l) x 550 (h) mm, medium

$ 18.90*
Microscopy supplies (2)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
+ Show more accessories in this category: 1

*All prices include VAT plus shipping costs.

show more...
Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD

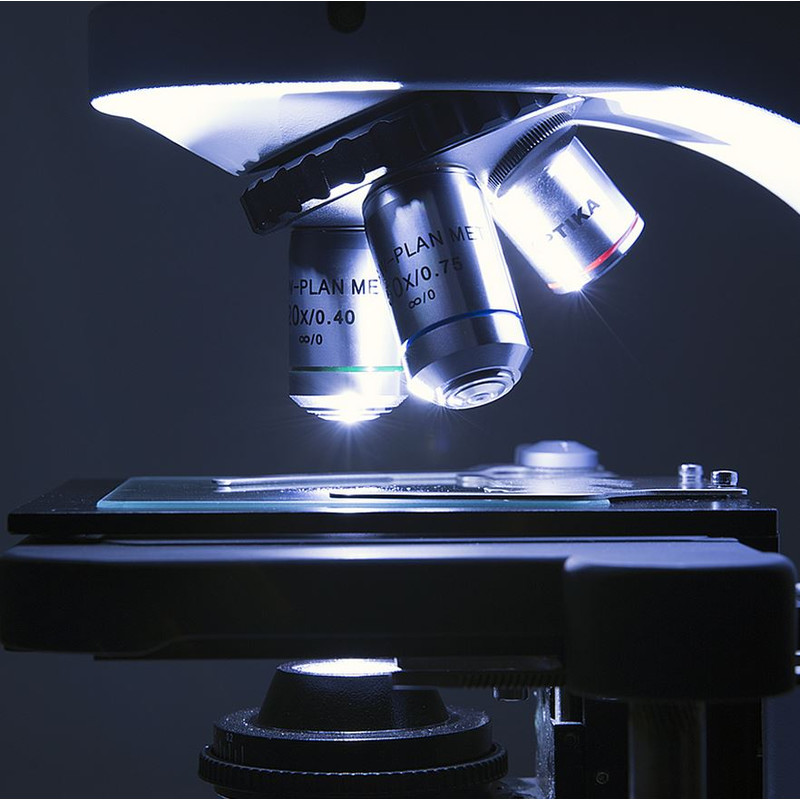

High-efficiency LED brightfield illuminator, for the best outcome
Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD

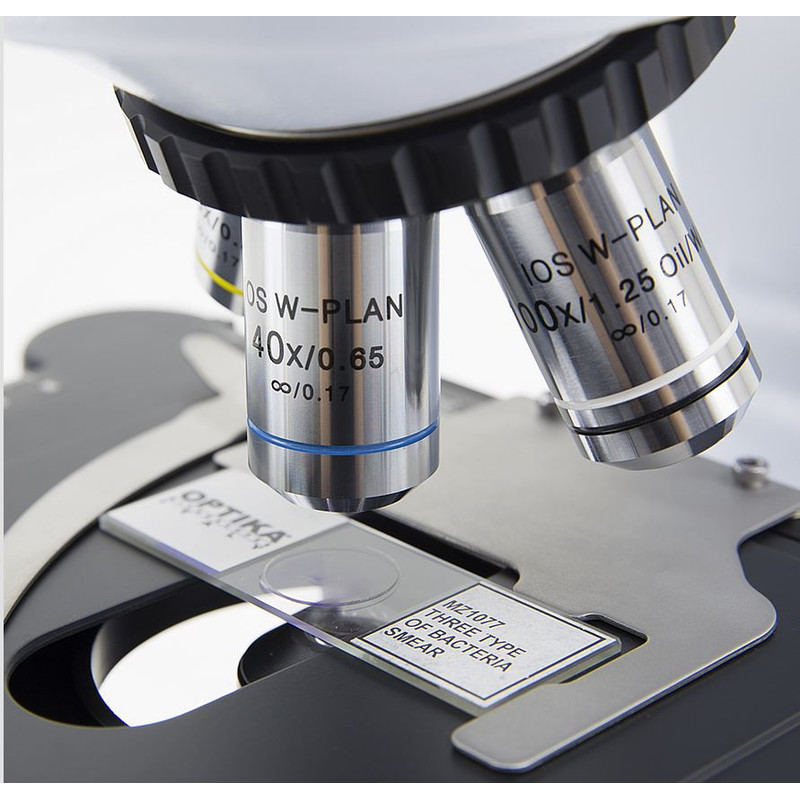

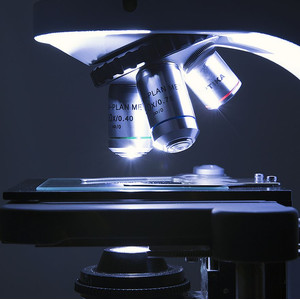

IOS W-PLAN objectives, high numerical apertures .Planachromatic optics with more than 90% flat field. Significant optical correction, low field curvature and distortion
Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD
Köhler illumination which optimizes the microscope optical path to produce high sample contrast and homogeneous bright light, reducing image artifacts, reflections and glares.
Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD
X-LED3 exclusive lighting source. Achieve bright images, improved colour fidelity, pure white colour temperature
Optika Microscope B-510-3IVD, trino, 3-head, W-PLAN IOS, 40x-1000x, IVD

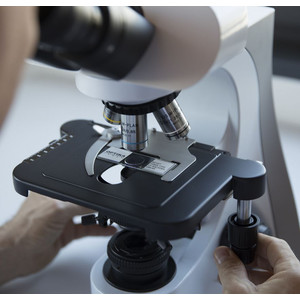

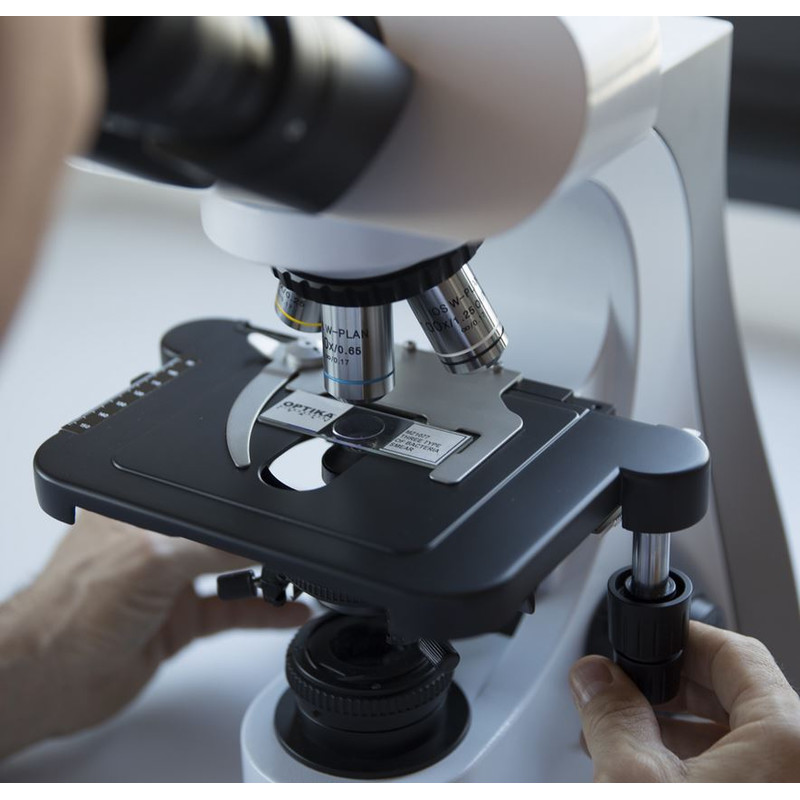

The rackless stage has been designed with a belt-driven mechanism that allows a smooth movement without any protruding part.
