Microscopes > Upright microscopes > Bright field microscopes > Motic > BA-210 > Motic Microscope BA210 trino, infinity, EC- plan, achromatic, 40x-1000x, LED
Product no.: 67727

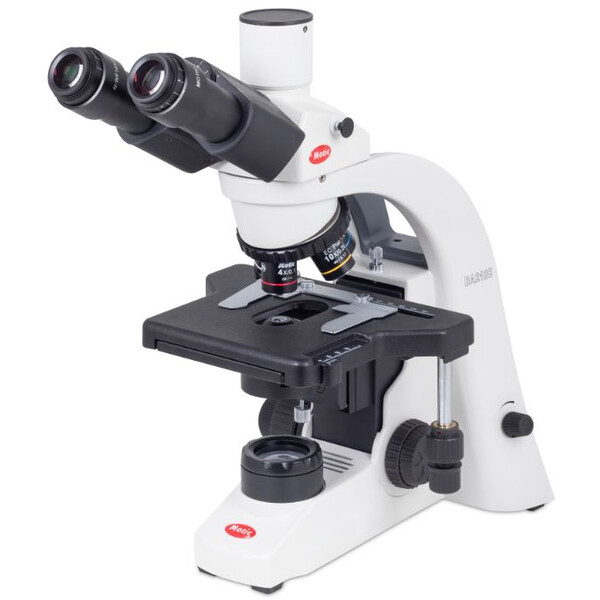

Microscope BA210 trino, infinity, EC- plan, achromatic, 40x-1000x, LED

$ 1,670.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
Product questions?
advice for Microscopy

Product description

More about the series BA-210...

  • Observation tube Trinocular head, Siedentopf type
  • Trinocular light split 100:0/20:80
  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube Trinocular head, Siedentopf type
  • Inclination 30º inclined, 360º rotating
  • Interpupillary distance 55-75mm
  • Diopter adjustment On both eyepieces, +/- 5 diopter
  • Eyepieces Widefield N-WF10X/20mm with diopter adjustment
  • Nosepiece Reversed quadruple
  • Objective classification CCIS® EC Plan Achromatic, DIN
  • Objective mounting thread W 4/5"x1/36" (RMS standard)
  • Stand type Upright
  • Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
  • Stage size 150x150mm
  • Travel range X&Y 80x30mm
  • Condenser Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders
  • Diaphragm Iris diaphragm
  • Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
  • Fine focus precision 2µm
  • Focusing stroke 20mm
  • Upper limit stop Upper limit stop preset but adjustable
  • Filter holder On top of the illuminator with fixing cap
  • Transmitted illumination Quartz halogen 6V/30W with intensity control
  • Illumination interchangeability Quartz halogen 6V/30W or LED 3W
  • Transformer Internal
  • Power supply 100-240V (CE)
  • Accessories included
  1. Dust cover
  2. power cord
  3. Hex key
  4. immersion oil (5ml)
  5. blue filter
  6. spare fuse
  7. cord hanger
  8. thumb screw
  • Dimensions LxWxH 360x220x395mm
  • Net weight 7.2kg

Specifications

Optics

Magnification
1000 (40, 100, 400, 1000)
Eyepiece
10 (WF 10x/20mm)
Lens type
Plan, achromatic (CCIS, 4 (N/A 0.10), 10 (N/A 0.25), 40 (N/A 0.65), 100 (N/A 1.25 oil immersion))
Condensor
Abbe condenser (NA 1.25), with slider slot, centering and iris
Lighting
Transmitted light
Lamp type
LED (3W)
Optical system
infinity
Objective 1
4x/0.10 wd 15.9 mm
Objective 2
10X/0.25 AA 17.4mm
Objective 3
40X/0.65/S AA 0.5mm
Objective 4
100x/1.25/S

Capacity

Brightness control
yes
Power supply
100-240V, VDE plug (CE) mains adaptor
brightfield
yes

Mechanics

Type of build
Trinocular
Focusing
Coarse and fine movement (Coaxial coarse and fine drive)
Viewing posture (°)
30° oblique viewing, 360° rotating head
Specimen stage
Cross table (150 x 150 mm, 80x30mm)

Special features

Dust cover bag
yes
Filter holder
yes
Wide-angle eyepiece
yes (10 x / 20)

General

Colour
grey/black
Weight (g)
7200
Length (mm)
360
Height (mm)
395
Width (mm)
220
Series
BA-210

Field of application

Medicine
yes
Education
yes

Area of application

Interference contrast
-
Metallurgy
-
Veterinary medicine
yes
University
yes
Technical training
yes

Miscellaneous

supplier product number
1100100403742
show more...

Product safety

Manufacturer: Motic Deutschland GmbH, Christian-Kremp-Straße 11, 35578 Wetzlar, DE, http://www.moticeurope.com/
