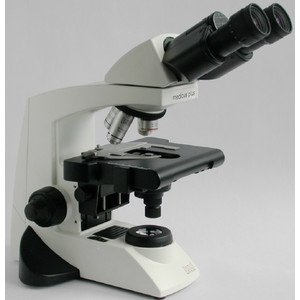

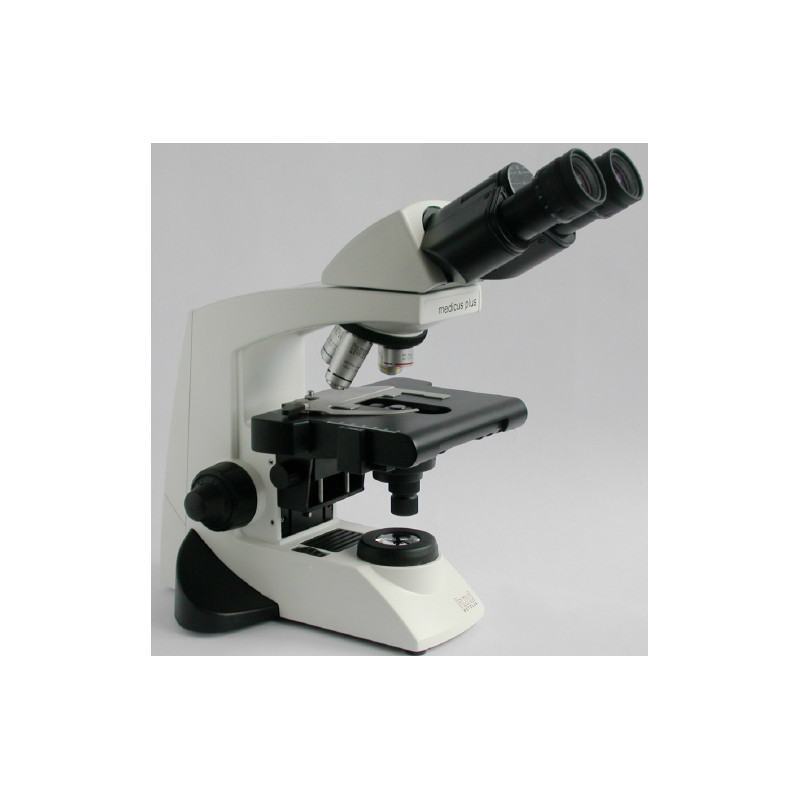

medicus plus PH with trinocular tube

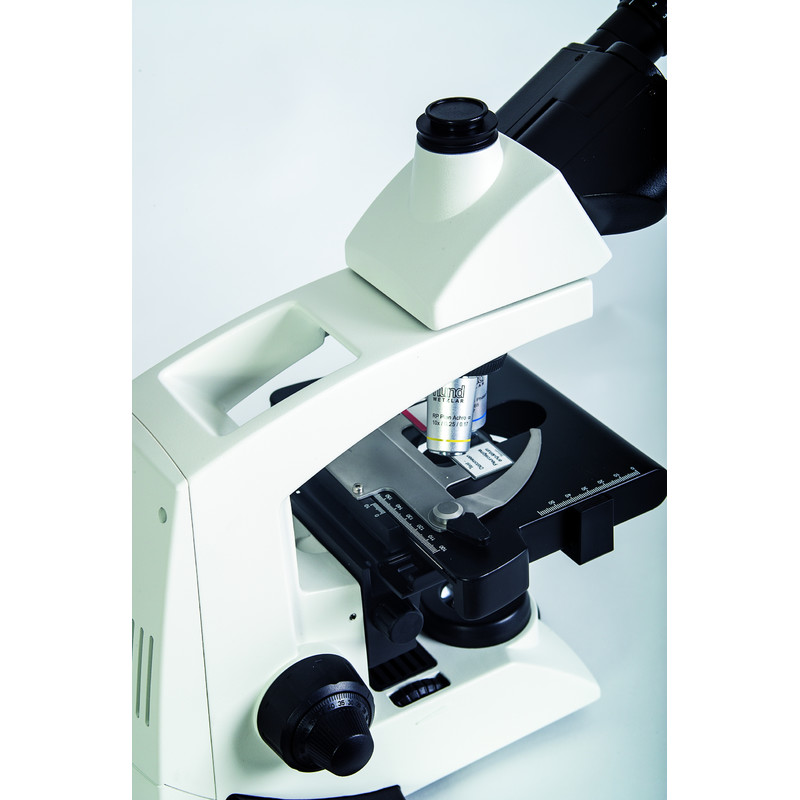

The bright field and phase contrast microscope for medical practices with planachromatic lenses, large field of view and trinocular tube for direct connection of C-mount cameras.

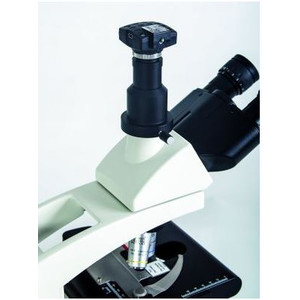

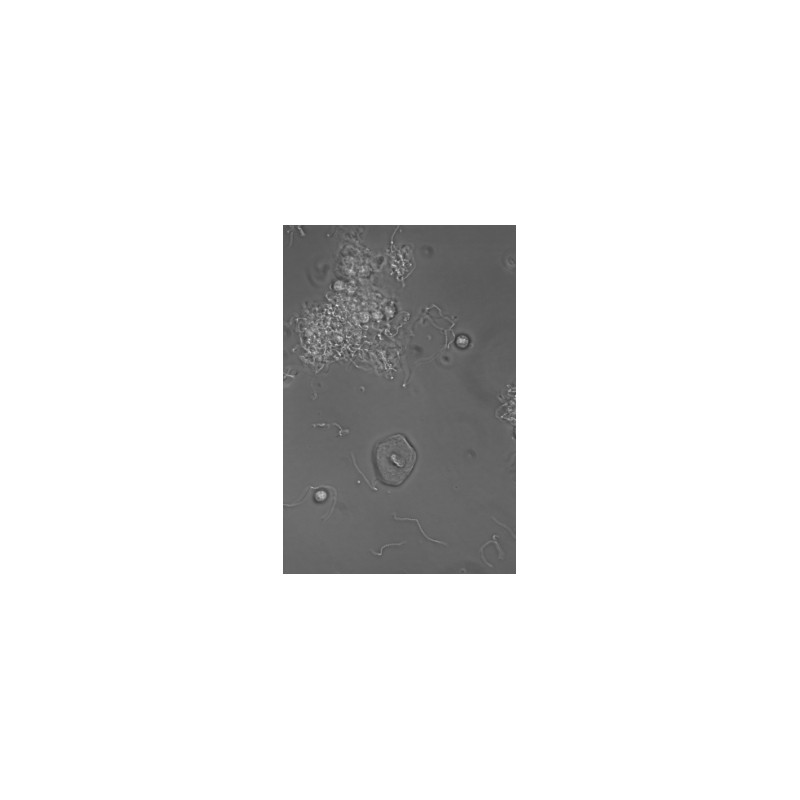

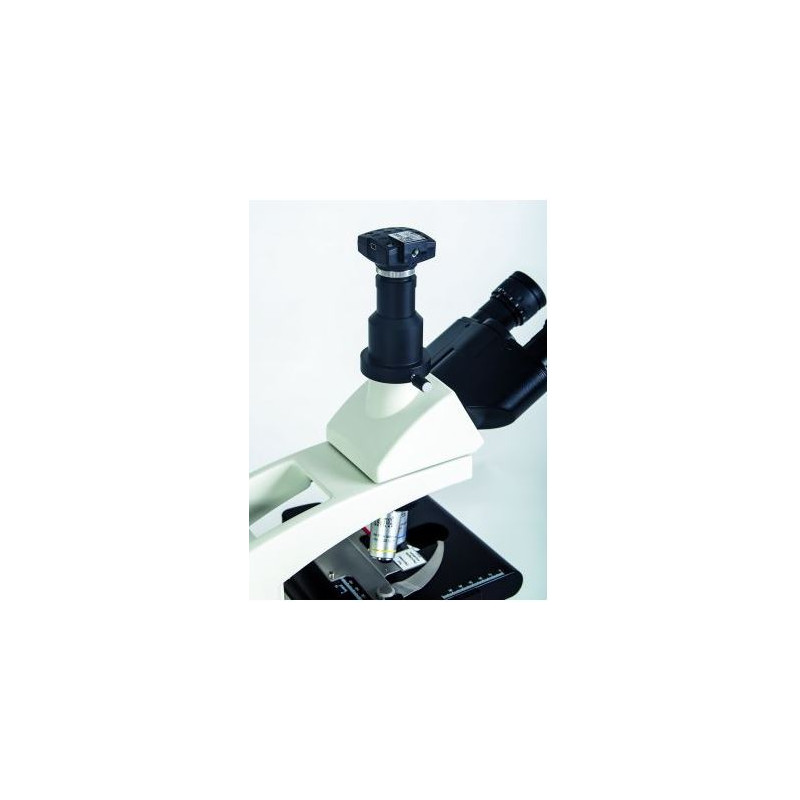

The Hund Medicus PH Plan, trino microscope has been specially designed for use in urology practices. Examination of urine samples for insoluble components (e.g. erythrocytes, leukocytes, crystalline structures). Examination of urine for any bacteria present for microbiological assessment. The use of phase contrast allows low-contrast components to be made visible. The trinocular head, with an optionally available phototube and camera, allows for easy documentation.
Description:

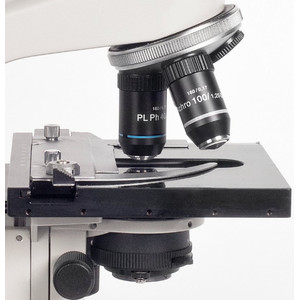

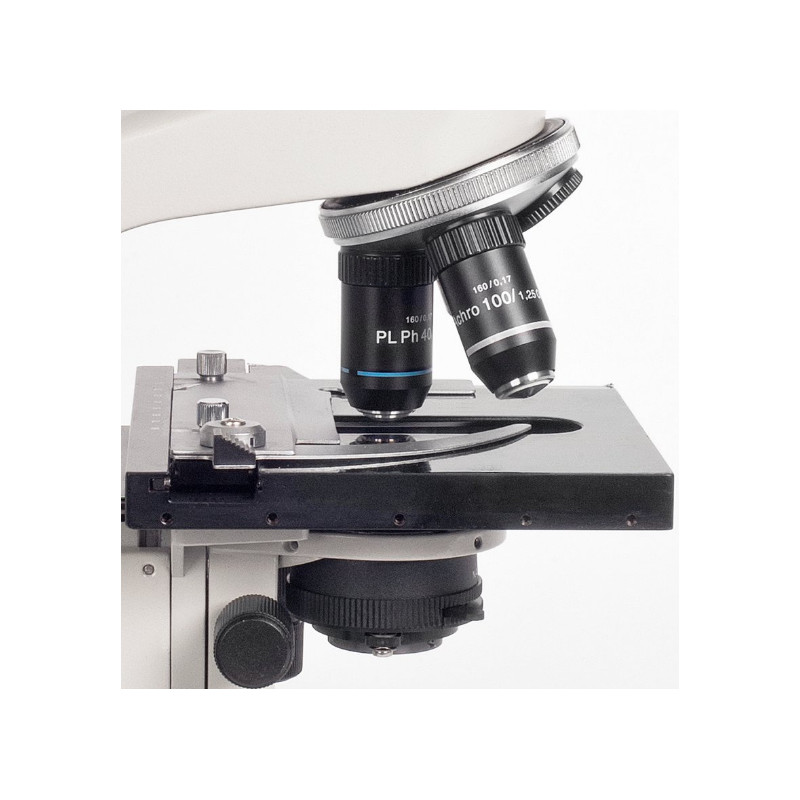

- Tripods &mounts: with 4-position objective turret
- Contrast methods: Bright field, phase contrast
- Tube: Binocular, Siedentopf type, 30°
- Eyepieces: WF 10x/20
- Objectives: Plan 10x/0.25; Plan Ph 40x/0.65; Plan 100x/1.25 (oil)
- Magnification: 100x - 1000x
- Microscope stage: Cross table 200 mm x 160 mm
- Condenser: NA 1.25 for bright field and phase contrast (slider), with aperture diaphragm and filter
- Lighting: 6V / 20W halogen, continuously adjustable
Scope
- dust cover
- Spare lamp
- Spare fuse
- Immersion oil
- Hexagon wrench
- Power cord
