Microscopes > Upright microscopes > Bright field microscopes > Hund > Med Prax > Hund Microscope MED PRAX 3, bino, 40x - 1000x
Product no.: 53098

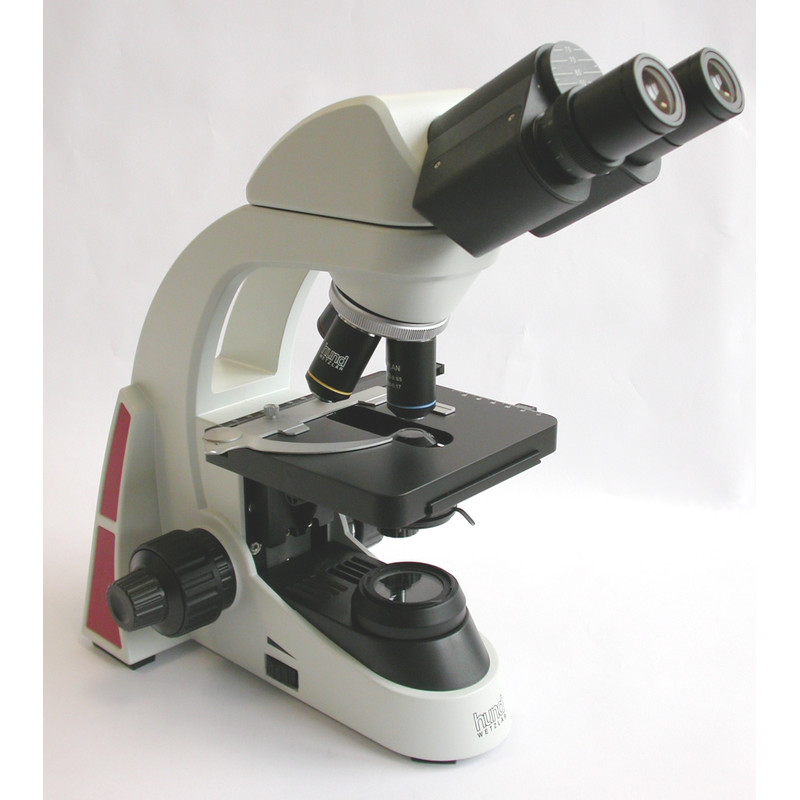

Microscope MED PRAX 3, bino, 40x - 1000x

$ 880.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time
Product questions?
advice for Microscopy

Product description

Med-Prax 3

The microscope for biological laboratories and education

A safe investment: reliable microscopic results with expert advice

Thanks to its special features, the Med-Prax 3 is the ideal instrument for routine examinations of biological samples in medicine and education.

• Easy adjustment of the bright field image

• Ergonomic working

• Long-life LED lighting

• Optimal image quality

• High stability and durability

Specification:

Description

  • Tripod: 4-position objective turret
  • Contrast method: transmitted light, bright field
  • Tube: binocular, 30°; Siedentopf type
  • Eyepieces: wide field 10x/18
  • Objectives: Plan 4/0.10, Plan 10/0.25, Plan 40/0.65 and Plan 100/1.25 (oil)
  • Magnification: 40 - 1000x
  • Microscope stage: Cross table 140 mm x 130 mm
  • Condenser: Bright field condenser NA 1.25, with aperture diaphragm
  • Lighting: high-performance LED, white
  • Accessories: Power pack, immersion oil, operating instructions, dust cover
  • Order number: 53098

Specifications

Optics

Image scale
4-100
Lighting
Transmitted light
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Lamp type
LED
Lens type
Plan, achromatic
Eyepiece
10 x /18 (Diopter correction left)
Magnification
1000 (50, 100, 500, 1000)
Objective 1
4/0,10 plan-achromatisch
Objective 2
10/0,25 plan-achromatisch
Objective 3
40/0,65 S plan-achromatisch
Objective 4
100/1,25 S Oil plan-achromatisch
Optical system
DIN (160mm)
infinity corrected
no

Capacity

Brightness control
yes
brightfield
yes

Mechanics

Viewing posture (°)
Siedentop tube; 30° viewing angle
Specimen stage
Cross table (140 mm x 130 mm; 76 mm x 50 mm)
Type of build
binocular
Focusing
Coarse and fine movement
Revolver
4

Special features

Dust cover bag
yes

General

Series
Med Prax

Field of application

Education
yes
Medicine
yes
Biology
yes

Area of application

University
yes
Veterinary medicine
yes
Technical training
yes
High School
yes
Internal medicine
yes
Naturopathy
yes
Gynecology
yes
Central laboratories
yes
show more...

Product safety

Manufacturer: Helmut Hund GmbH, Artur-Herzog-Str. 2, 35580 Wetzlar, DE, www.hund.de
Product safety

Recommended accessories

Microscopy supplies (2)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
+ Show more accessories in this category: 1

*All prices include VAT plus shipping costs.

Hund Microscope MED PRAX 3, bino, 40x - 1000x

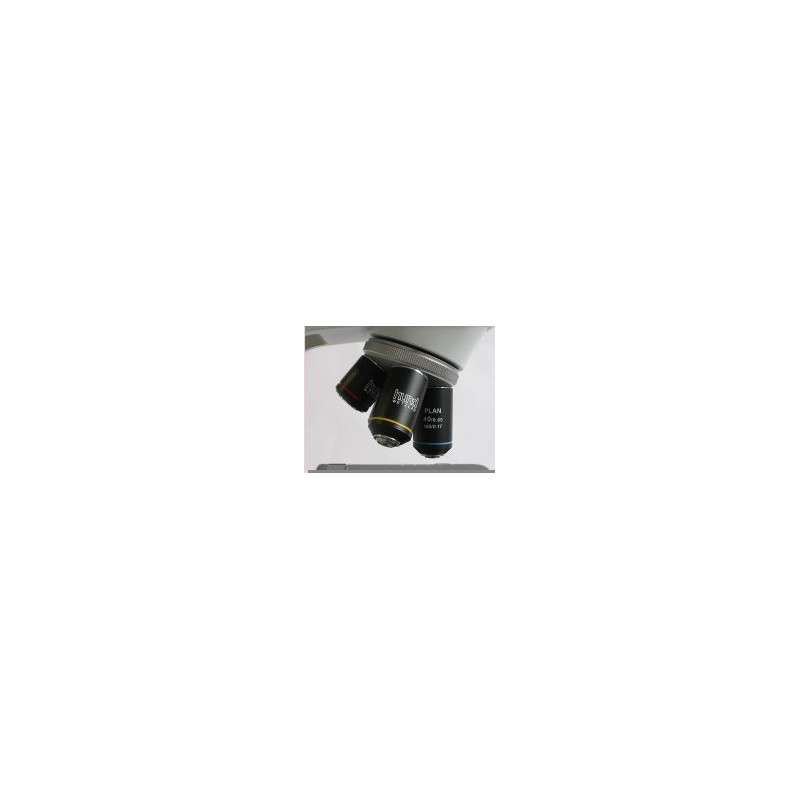

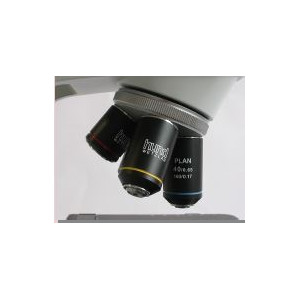

quadruple nosepiece with planachromatic objectives
Hund Microscope MED PRAX 3, bino, 40x - 1000x

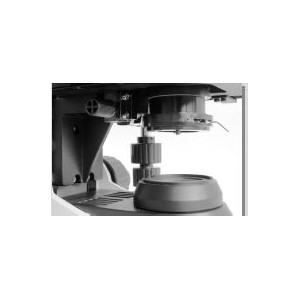

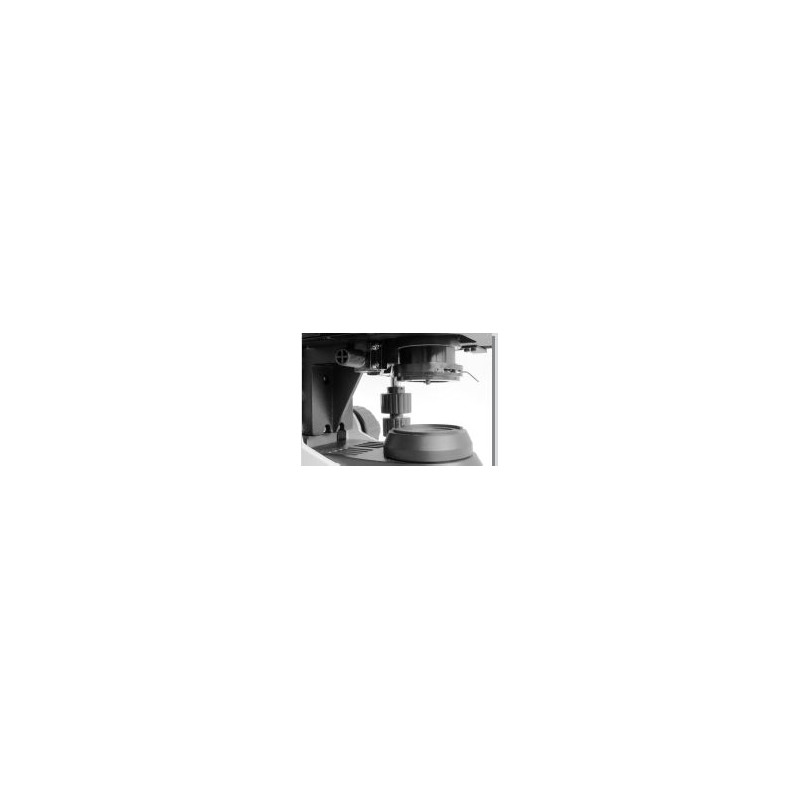

Abbe condenser (NA 1 .25) with aperture diaphragm
Hund Microscope MED PRAX 3, bino, 40x - 1000x

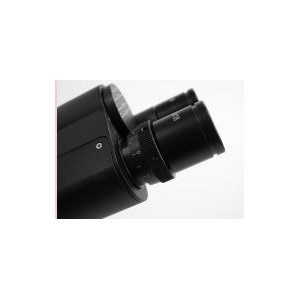

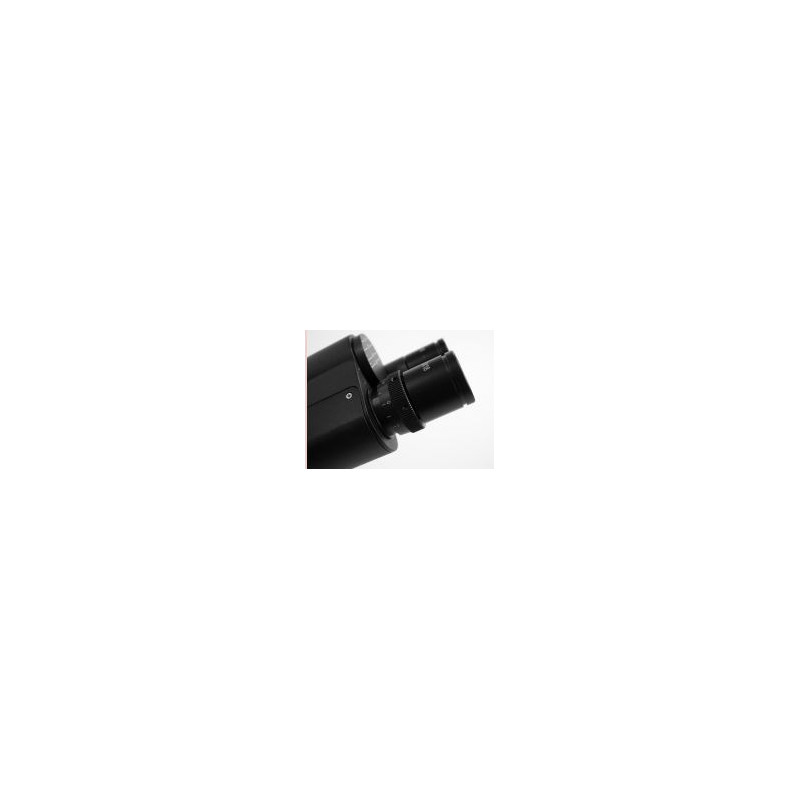

eypepieces WF 1 0x/1 8 with diopter correction
Hund Microscope MED PRAX 3, bino, 40x - 1000x

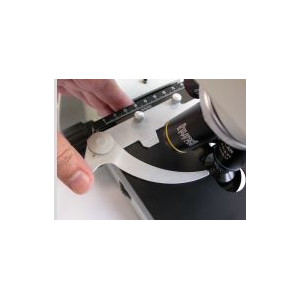

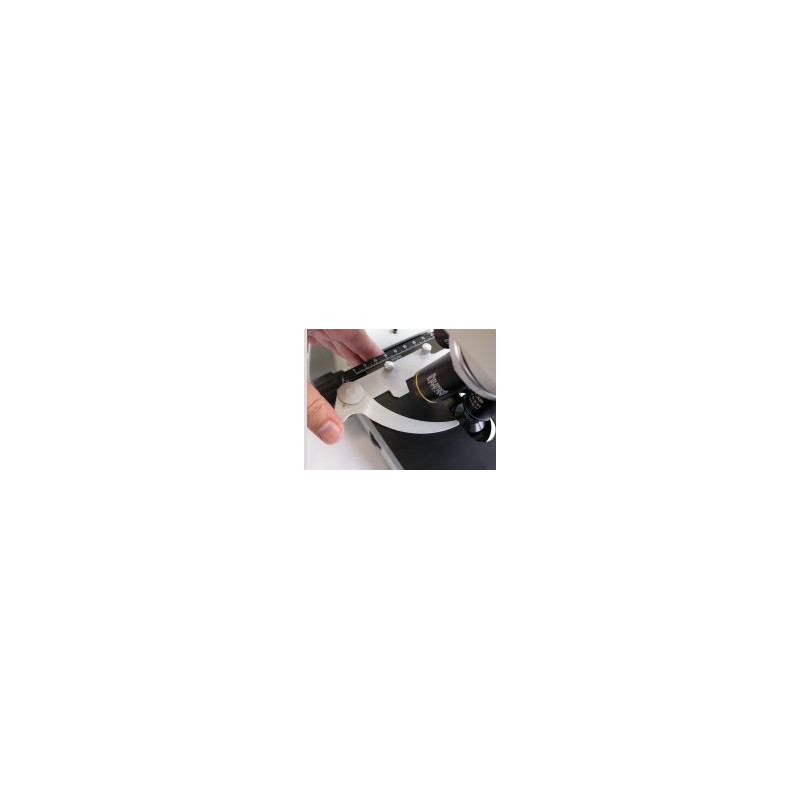

140 mm x 130 mm mechanical stage
