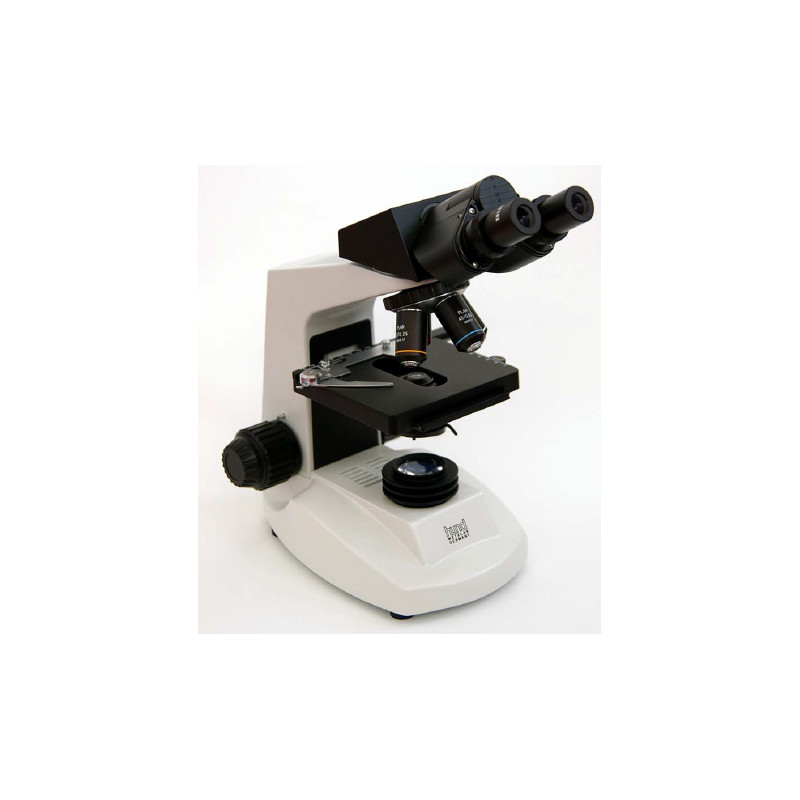

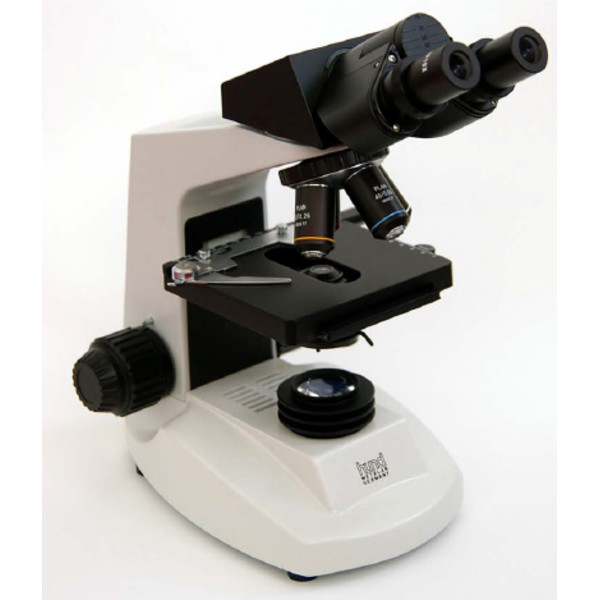

Thanks to its special features, the Med-Prax plus is the ideal instrument for routine examinations of biological samples in medicine and education.
- Long service life thanks to robust and compact design
- Easy to use
- No lamp replacement thanks to LED lighting
- Flat image thanks to plan achromatic lenses (4x, 10x, 40x, 100x (oil))
- No collision between sample and lenses thanks to focus stop
- Fatigue-free working thanks to Siedentopf tube
- Attractive price
Details

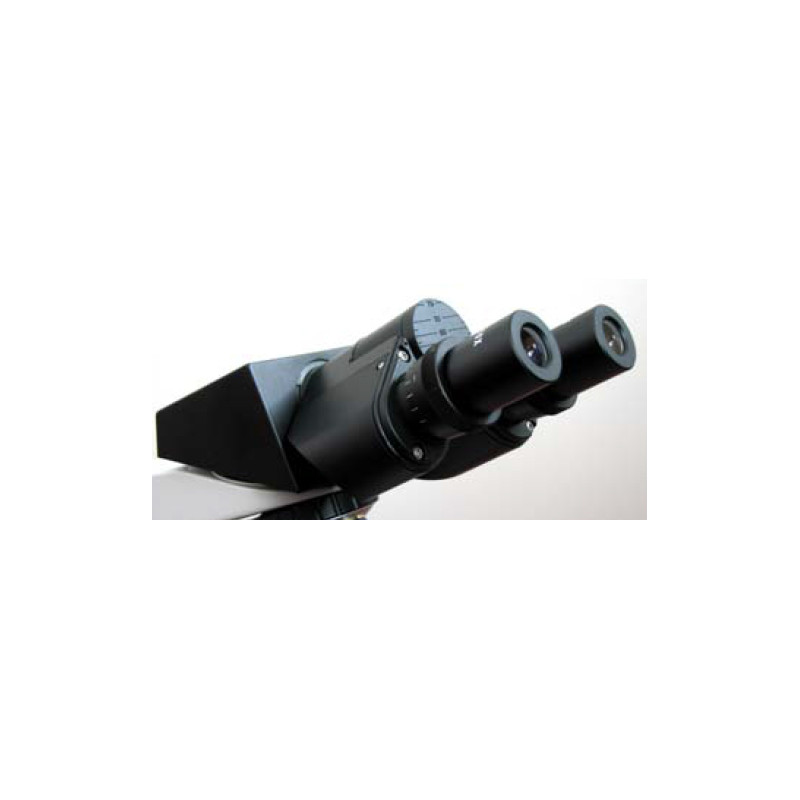

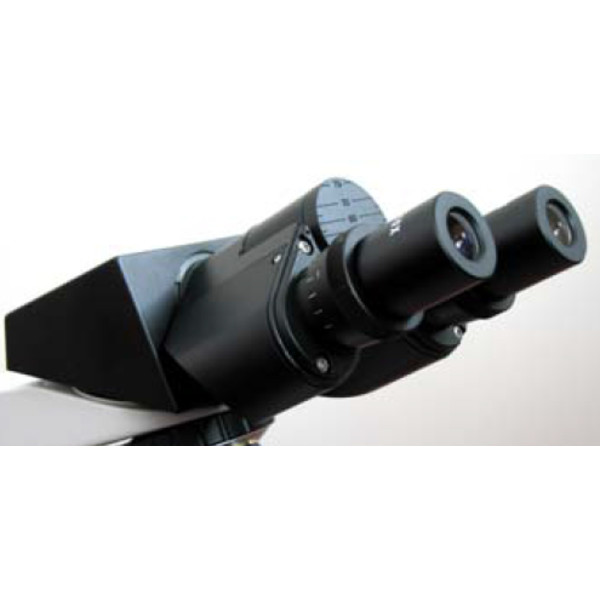

Ergonomic binocular tube according to Siedentopf
• Ergonomically favourable viewing angle (30°)
• Easy adjustment of the interpupillary distance (55 - 75 mm)

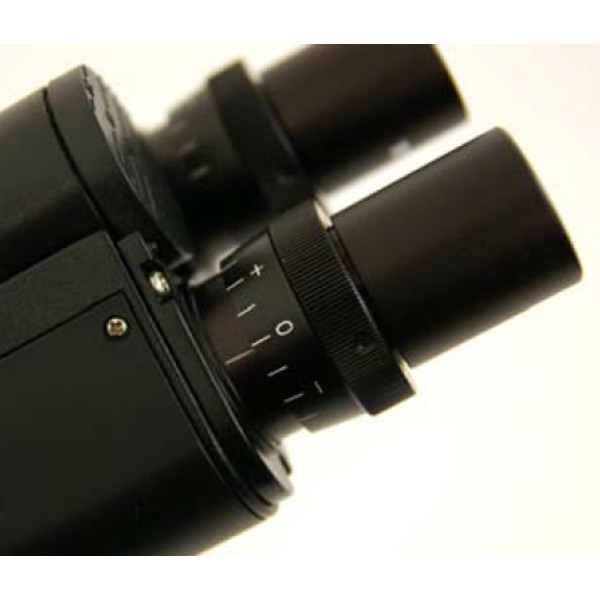

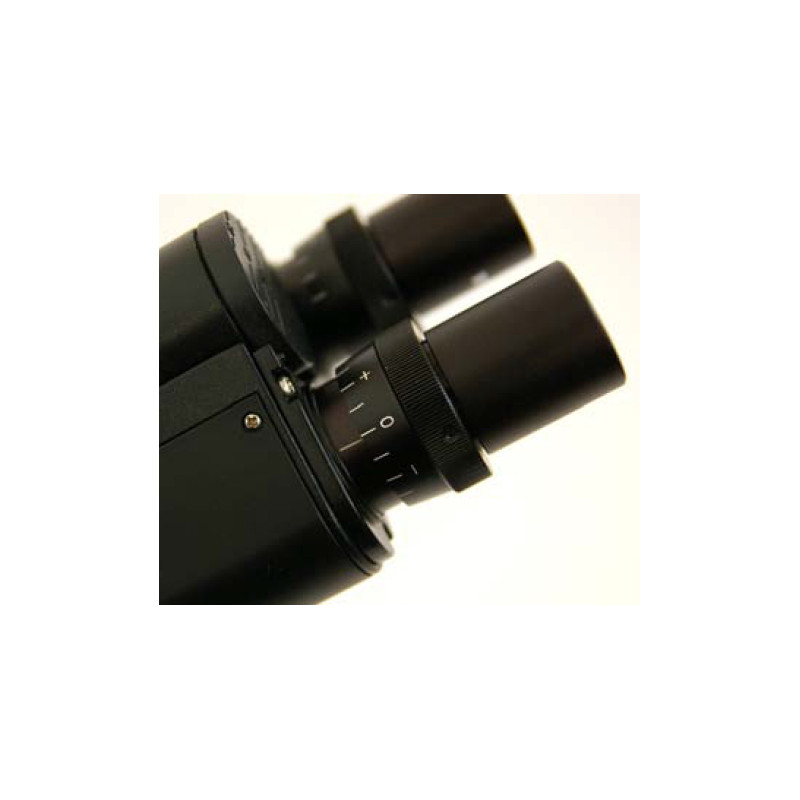

• Diopter correction on both eyepiece tubes

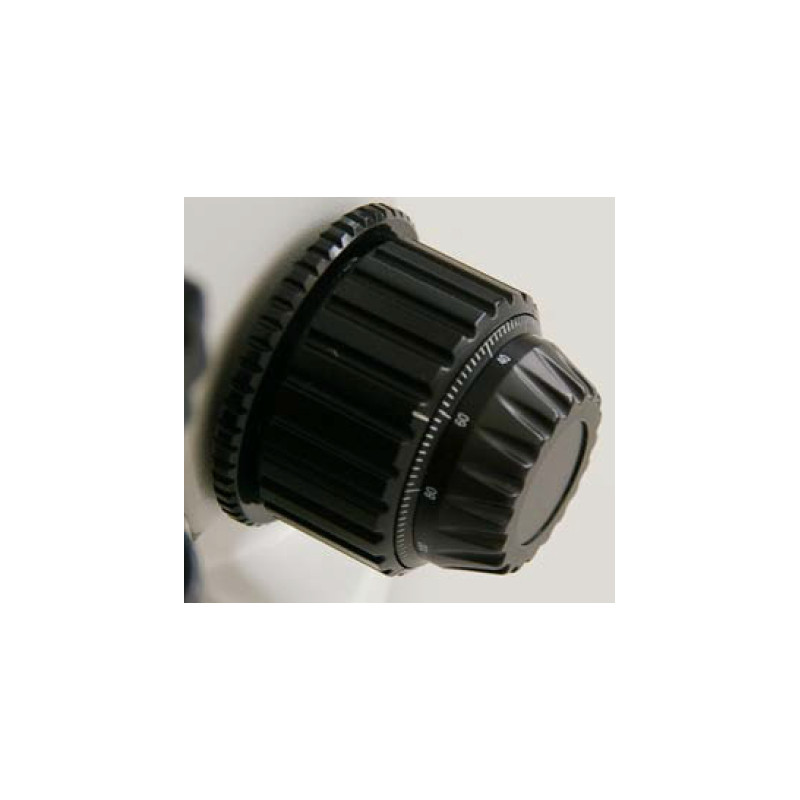

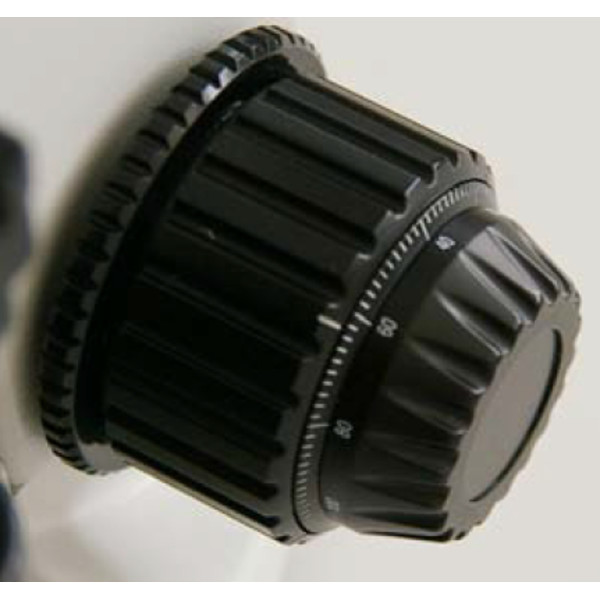

Comfortable focus drive with additional functions
• Coaxial coarse and fine adjustment for quick and sensitive focusing of specimens
• Adjustable smoothness of the coarse adjustment on the right coarse adjustment
• Focus stop on the left focus knob to prevent collisions between lenses and specimen
Ergonomic arrangement of controls
• On/off switch and brightness adjustment are located near the focus knob for ergonomic and fatigue-free working
Complete range of lenses
For maximum field flattening, the Med-Prax plus quadruple revolver is equipped with plan achromatic lenses:
• Plan 4/0.1 0
• Plan 1 0/0.25
• Plan 40/0.65, with spring-loaded specimen guard
• Plan 1 00/1 ,25 oil, with spring-loaded specimen protection
Optimal illumination system
• Abbe condenser (NA 1.25) with integrated aperture diaphragm for homogeneous illumination of the image field
• Blue, green and yellow filters can be inserted into the integrated filter holder for individual adjustment of the image impression and to improve contrast
• Light source with stepless brightness control
Wide-field eyepieces with diopter correction
• Standard eyepieces WF 1 0x/1 8 with individual diopter correction on both eyepiece sockets
• Eyepieces can be secured against accidental removal, especially for use in training

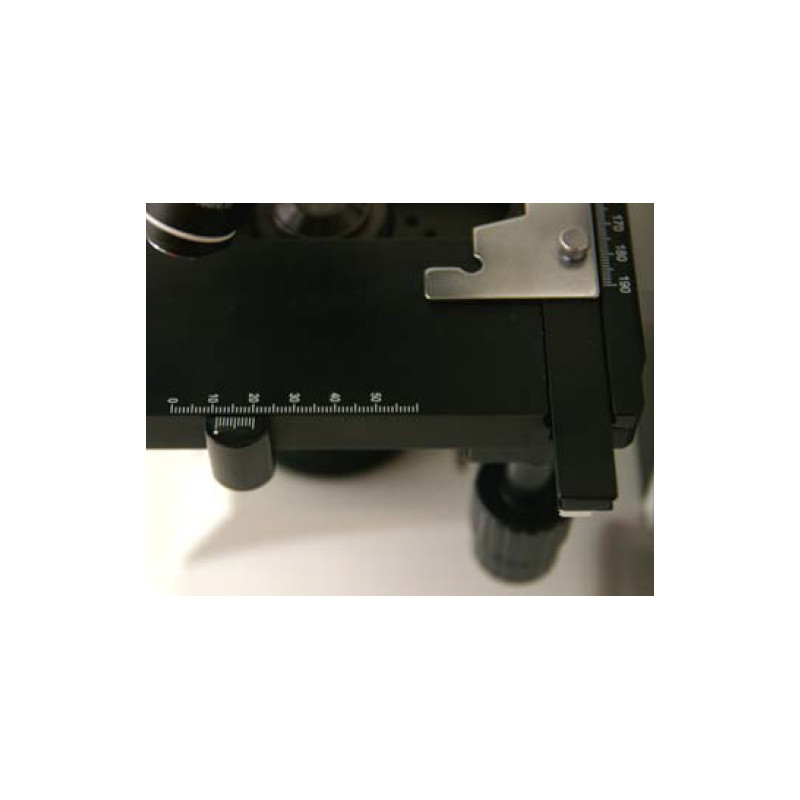

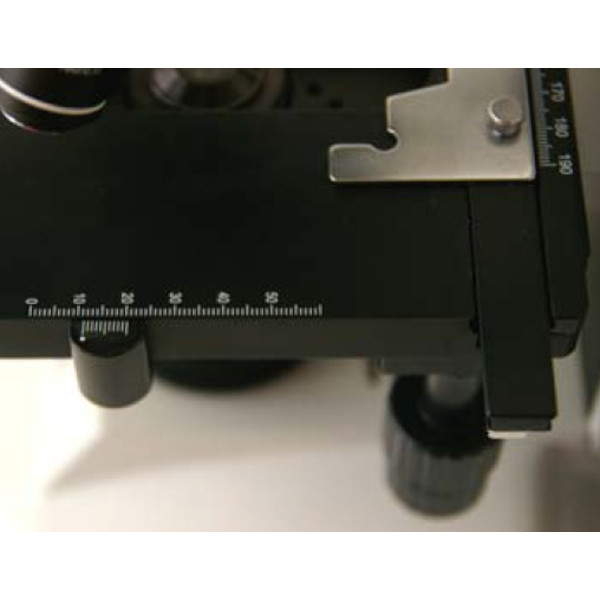

Robust and comfortable cross table
• The Med-Prax plus is equipped with a 1 40 mm x 1 30 mm cross table with an adjustment range of 50 mm x 75 mm
• Vernier scales in both directions allow easy retrieval of interesting specimen locations
• Specimen holder for secure mounting of standard slides (76 mm x 26 mm)
Long maintenance intervals
• High-quality materials and excellent workmanship require very little maintenance
Lighting with warm white high-performance LED
• The usable brightness of the LED light source corresponds to that of a 20 W halogen lamp, but with less than one-sixth of the power consumption
• The long service life of the LED means that no lamp replacement is necessary during the entire economic life of the microscope
