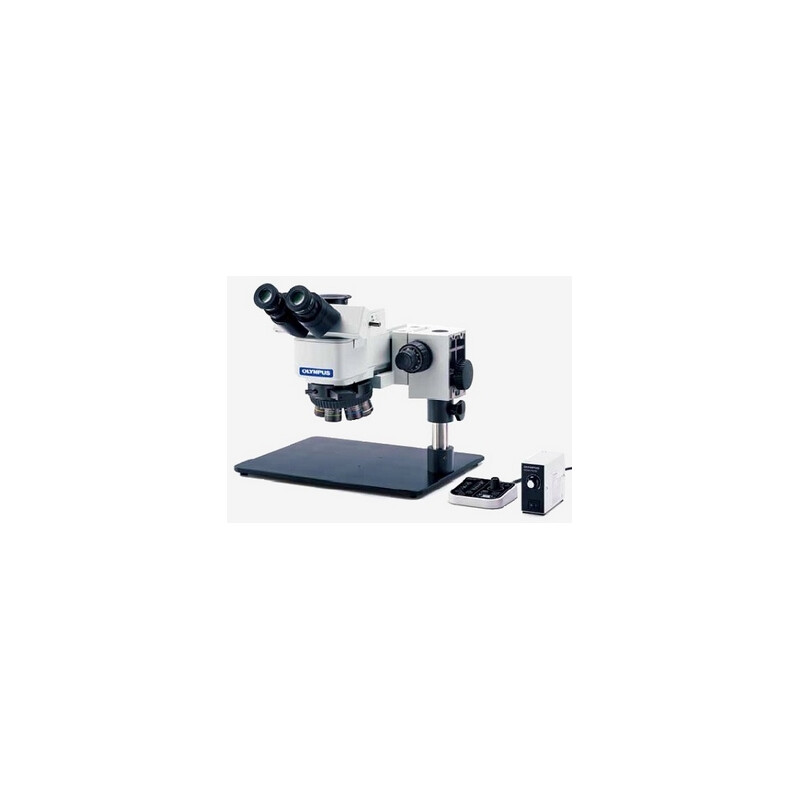

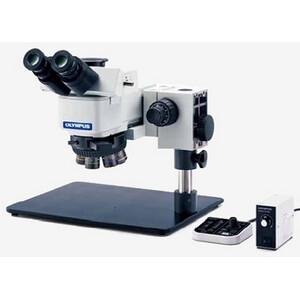

BFMX
Optical system: UIS2 optical system (infinity-corrected)
Eyepieces: 10x/22
Lighting: Incident light: White light LED, HF/DF/DIC/POL/MIX illuminated field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock
Transmitted lightCoded, white light LED, HF/DF/DIC/POL/MIX illuminating field diaphragm, aperture diaphragm (with centring mechanism), HF/DF lock
Objective turret for bright field: 5-fold
Objective turret for HF, DF, MIX: 6-fold
Condenser with long working distance
Objectives not included.
Modules BFMX MIX
- CONNECTION CABLE UYCP 035425
- Illuminator BX3M-RLA-S N5232500
- Light source BX3M-LEDR N5232800
- Trinocular tube U-TR30-2-2 N1512000
- Eyepiece WHN10X-H-1-8 N5728800
- Eyepiece WHN10X-1-8 N5728700
- Cable U-MIXRCBL-1-2 N5690200
- 5x objective turret U-D5BDRE 5X bright field/dark field N5235100037403
- FOCUSING UNIT BXFM-F 037018
- Large tripod SZ-STL 033357
- Holder for reflected light condenser BXFM-ILH Bright-dark field 037185
- Power supply BX3M-PSLED-1-3 N5730700
- Slider U-MIXR N5233700
- Control unit BX3M-CBFM-1-3 N5730600
