Microscopes > Upright microscopes > Bright field microscopes > Euromex > BioBlue > Euromex Microscope MicroBlue, MB.1655-1, mono, DIN 160, achro, 40x-600x, 10x/18, Dl, digital, battery, LED, 1W
Product no.: 80502

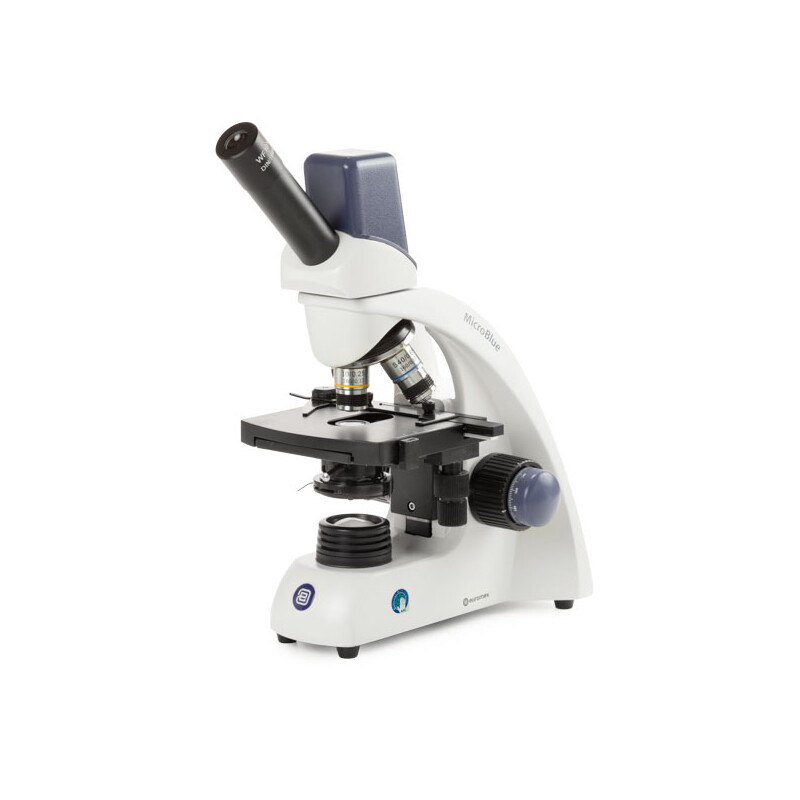

Microscope MicroBlue, MB.1655-1, mono, DIN 160, achro, 40x-600x, 10x/18, Dl, digital, battery, LED, 1W

$ 610.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series BioBlue...

Euromex MicroBlue – Your versatile entry-level microscope

The Euromex MicroBlue impresses with its high-quality optics, precise mechanics and hygienic surface – ideal for laboratories, teaching and entry-level research. Key features include:

  • Anti-microbial Protection Layer (APL™) for permanently germ-free surfaces
  • Achromatic lenses and Abbe condenser for razor-sharp bright field images
  • Ball-bearing revolving nosepiece and finely adjustable X-Y stage for precise sample control
  • LED/NeoLED™ lighting with integrated battery option for uniform illumination
  • Digital connection for direct integration of cameras or 7" touch LCD
  • Ergonomic design with carrying handle and Kensington theft protection
  • Extensive accessories (filters, immersion oil, power supply) and

optional equipment
Depending on the application and budget, the following components can be added to tailor your MicroBlue perfectly to your needs:

  • Digital cameras (1.3 MP or 5 MP USB) for high-resolution image and video recording
  • LCD modules with 7" touchscreen for live monitoring and micro SD memory
  • Additional lenses: plan apochromats, phase contrast lenses or oil immersion (60×, 100×)
  • Phase contrast condenser for high-contrast images of living cells
  • Special filter sets (GFP, DAPI, etc.) for fluorescence preparation
  • Dust covers and transport cases for mobile use

Documentation software packages with advanced analysis and measurement functions

Whether you want to perform simple bright field observations or set up sophisticated digital laboratory facilities, the optional modules turn the Euromex MicroBlue into an individual all-rounder.

Specifications

Optics


Image scale
40-1000 (20 (N.A. 0.40) achromatic, 40 (N.A. 0.65 with slide contact protection))
Lamp type
LED (1 watt, dimmable)
Lens type
Semi-Plan Achromatic
Eyepiece
10x/18 (Widefield)
Power supply
85-240V, built-in battery charger, detachable power cord
Magnification
40-1000 (50, 100, 500, 1000)
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Optical system
infinity
Objective 1
4x/0,13
Objective 2
10x/0,25
Objective 3
40x/0,65 S
Objective 4
100x/1,25 S Oil

Capacity


Brightness control
yes
brightfield
yes

Mechanics


Viewing posture (°)
45° angled eyepiece, 360° rotatable
Type of build
binocular
Focusing
Coarse and fine movement
Specimen stage
Cross table
Revolver
4

Special features


Rechargeable battery operation
yes
Filter holder
yes
Dust cover bag
yes

General


Series
BioBlue

Field of application


Medicine
-
Education
yes

Area of application


Veterinary medicine
yes
Collector
yes
Secondary school
yes
High School
yes

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
