Microscopes > Upright microscopes > Bright field microscopes > Euromex > iScope > Euromex Microscope iScope IS.1053-PLMi, trino, HF, POL, infinity, plan, 50x-500x, iCare, LED
Product no.: 51814

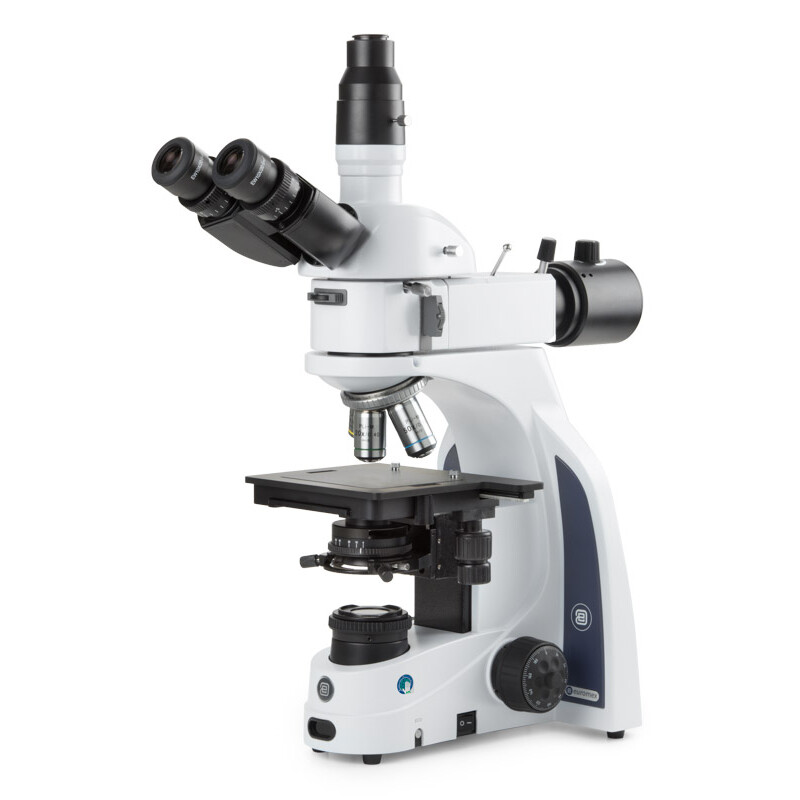

Microscope iScope IS.1053-PLMi, trino, HF, POL, infinity, plan, 50x-500x, iCare, LED

$ 3,570.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Specifications

Optics


Magnification
50 - 500
Lighting
Incident light and transmitted light
Lamp type
LED (<p><b>C-HB</b><p><b>HB camera, 1080p, 2 MP CMOS, HDMI, multi-plug</b><p>Cost-effective, entry-level HD camera with 1080p, 2 MP resolution, CMOS sensor and HDMI connection, recommended for its easy operation, no software installation is required with image capturing on SD card. Allows you to easily take measurements of samples or parts of them with a series of tools via software such as lines, angles and many more.<p>It also supports excel storage. Connection into the eyepiece tube or to the trinocular tube of any microscope brand via dedicated adapter (to be purchased separately).<p>Wireless mouse, SD card and built-in software included.<p><b>Highlights</b><ul><li>Simple operation, built-in software</li><li>Universal connection to any microscope brand</li><li>Crisp Full HD images</li><li>High frame rate</li><li>Reliable color fidelity</li><li>C-mount connection (via dedicated adapter, on any microscope)</li><li>HDMI cable, mouse and SD card included</li></ul>)
Eyepiece
EWF 10x / 20 mm (Ø 23.2 mm)
Number of objectives
4
infinity corrected
yes
Immersion lens
no (Optional)
Field curvature
Plan
Cover glass correction
no
Objective 1
5x / 0.12 (Plan material)
Objective 2
10x / 0.25 (Plan material)
Objective 3
20x / 0.40 (Plan material)
Objective 4
S50x / 0.70 (Plan material)
Condensor
Abbe condenser, adjustable
Power supply
100-240 V
Optical system
infinity

Capacity


brightfield
yes
Polarization
yes (Incident light)

Mechanics


Type of build
Trinocular
Viewing posture (°)
30
Focusing
Coarse and fine movement (200 µm, 2 µm accuracy)
Revolver
5
Specimen stage
Cross table

General


Series
iScope
Weight (g)
10500
Width (mm)
210
Length (mm)
255
Height (mm)
407

Contrast methods


brightfield
yes
Polarization
yes

Field of application


Industry
yes

Area of application


Materials technology
yes
Materials Science
yes
Metallurgy
yes

Miscellaneous


supplier product number
IS.1053-PLMi

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
