Microscopes > Upright microscopes > Bright field microscopes > Euromex > iScope > Euromex Microscope iScope, IS.1052-PLAi, bino
Product no.: 51815

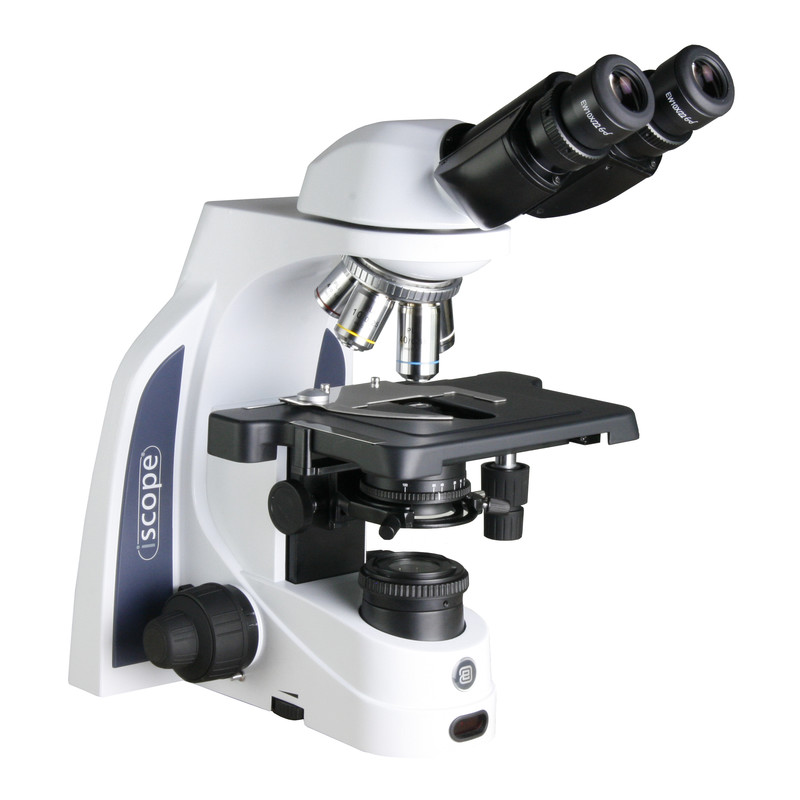

Microscope iScope, IS.1052-PLAi, bino

$ 3,090.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

More about the series iScope...

Euromex introduces a complete new series of iScope® microscopes. These state-of-the-art instruments have been specifically designed for Life Sciences and Biomedical Sciences.

The iScope® is available in different configurations. Thanks to the high resolving power of the objectives and the 3W NeoLed transmitted LED illumination, these microscopes can be used for all kind of demanding applications as well for fundamental research. Please find below a summary of the specifications

  • EWF10x/22 mm or EWF10x/20mm eyepieces
  • Binocular and trinocular heads
  • Quintuple nosepiece
  • E-Plan EPL 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion DIN objectives
  • E-Plan EPL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • Plan PL IOS 4x/0.10, 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil-immersion IOS objectives
  • 140 mm x 160 mm stage equipped with integrated 79 x 52 mm mechanical stage
  • 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  • Height adjustable Abbe condenser N.A. 1.25
  • Coarse and fine height adjustment
  • Diascopic intensity adjustable 3W NeoLED™ illumination with internal 85V-240V power supply
  • iCare sensor for energy saving
  • CSS - Cable Storage System
  • Models IS.1152-EPL and IS.1153-EPL are supplied with E-Plan objectives for bright field applications
  • Models IS.1152-EPLi and IS.1153-EPLi are supplied with E-Plan IOS objectives for bright field applications
  • Models IS.1152-PLi and IS.1153-PLi are supplied with Plan IOS objectives for bright field applications

The iScope is also available in a multi-head configuration

Highlights IS.1052-PLAi

  • HWF 12.5x/15 mm, Ø 30 mm eyepieces (1 piece), HWF 12x/15 mm Ø 30mm with Walton bracket (1 piece) diopter adjustment on both sides
  • Binocular tube
  • Reversed quintuple revolving nosepiece
  • Objectives IOS (infinity corrected)

  Plan PLi 4x/0.12

  Plan PLi 10x/0.25

  Plan PLi 20x/0.40

  Plan phase PLPHi S40x/0.65

  • 216 x 150 mm rackless stage with 79 x 52 mm x-y mechanical stage
  • Phase contrast condenser with 10/40 annuli in slider
  • green filter Ø45
  • alignment telescope Ø 30 mm
  • Diascopic 3 W NeoLED™ Köhler illumination
  • 110 and 240° power supply
  • iCare sensor for energy saving
  • CSS - Cable Storage System
  • 10-year warranty

Specifications

Optics


Magnification
50 - 500
Lighting
Transmitted light
Lamp type
LED (100 W Halogen)
Eyepiece
HWF 12.5x / 15 mm (Ø 30mm)
Number of objectives
3
infinity corrected
yes
Colour correction
achromatic
Immersion lens
no
Field curvature
Plan
Suspension
yes
Cover glass correction
yes
Objective 1
4x / 0.12 (Plan PLi)
Objective 2
10x / 0.25 (Plan PLi)
Objective 3
S40x / 0.65 (Plan PLPHi)
Condensor
Condenser with phase contrast slider for 10x/40x objectives
Optical system
infinity

Capacity


brightfield
yes

Mechanics


Type of build
binocular
Focusing
Coarse and fine movement (200 x 1µm)
Revolver
5
Specimen stage
Cross table (216 x 150 mm, (x/y 79 x 52mm) rackless)

General


Series
iScope
Weight (g)
10500
Width (mm)
210
Length (mm)
255
Height (mm)
407

Field of application


Medicine
-
Industry
yes

Area of application


Materials technology
yes
Mineralogy
yes
Metallurgy
-

Miscellaneous


supplier product number
IS.1052-PLMi

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
